✅ Fibaro HC3/HC3L
✅ Standalone
This guide assumes that you have already setup your iVSEC NVR & Cameras on the network, it must also be assigned a static IP address, you can do this either manually on the NVR, or via your DHCP server as a static reservation.
This plugin is only available in the PRO version of the automationbridge.
In order for the plugin to work fully, you need to enable ONVIF in the NVR, this can be done via the Network, Platform Access setting, enable with the following settings.
- Authentication Type : Digest/WSSE
- Protocol : HTTP/HTTPS
- Username : same as admin account for the NVR
- Password : same as admin account for the NVR

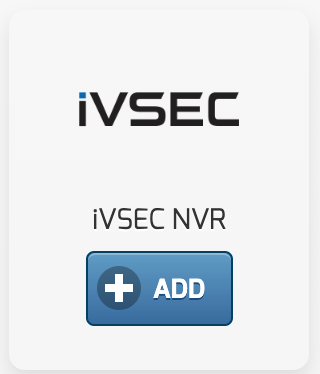

Step 1 - Click the Add button under the iVSEC logo to begin.

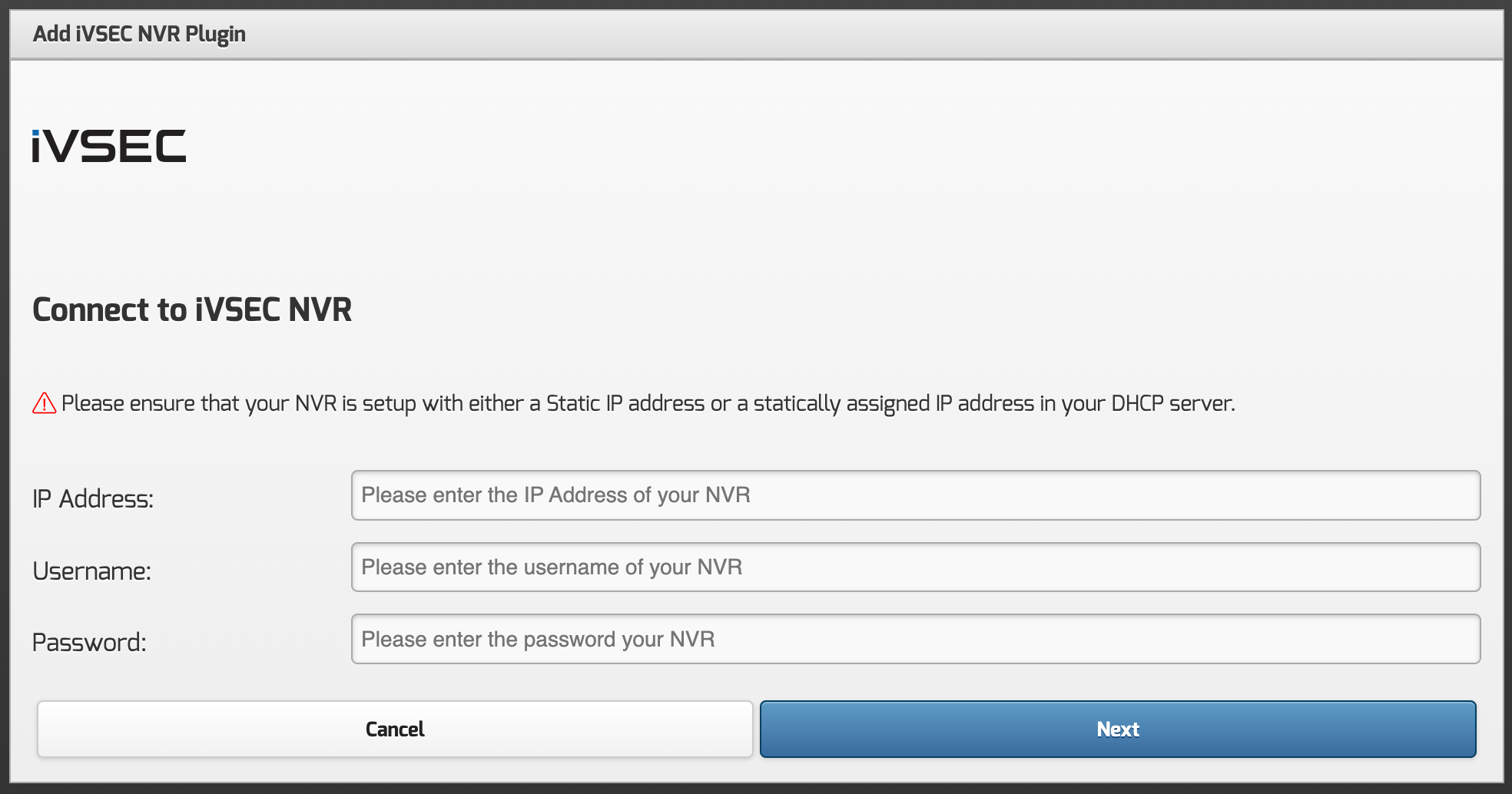

Step 2 - Complete the form, filling out the IP address and admin username and password, then click Next.

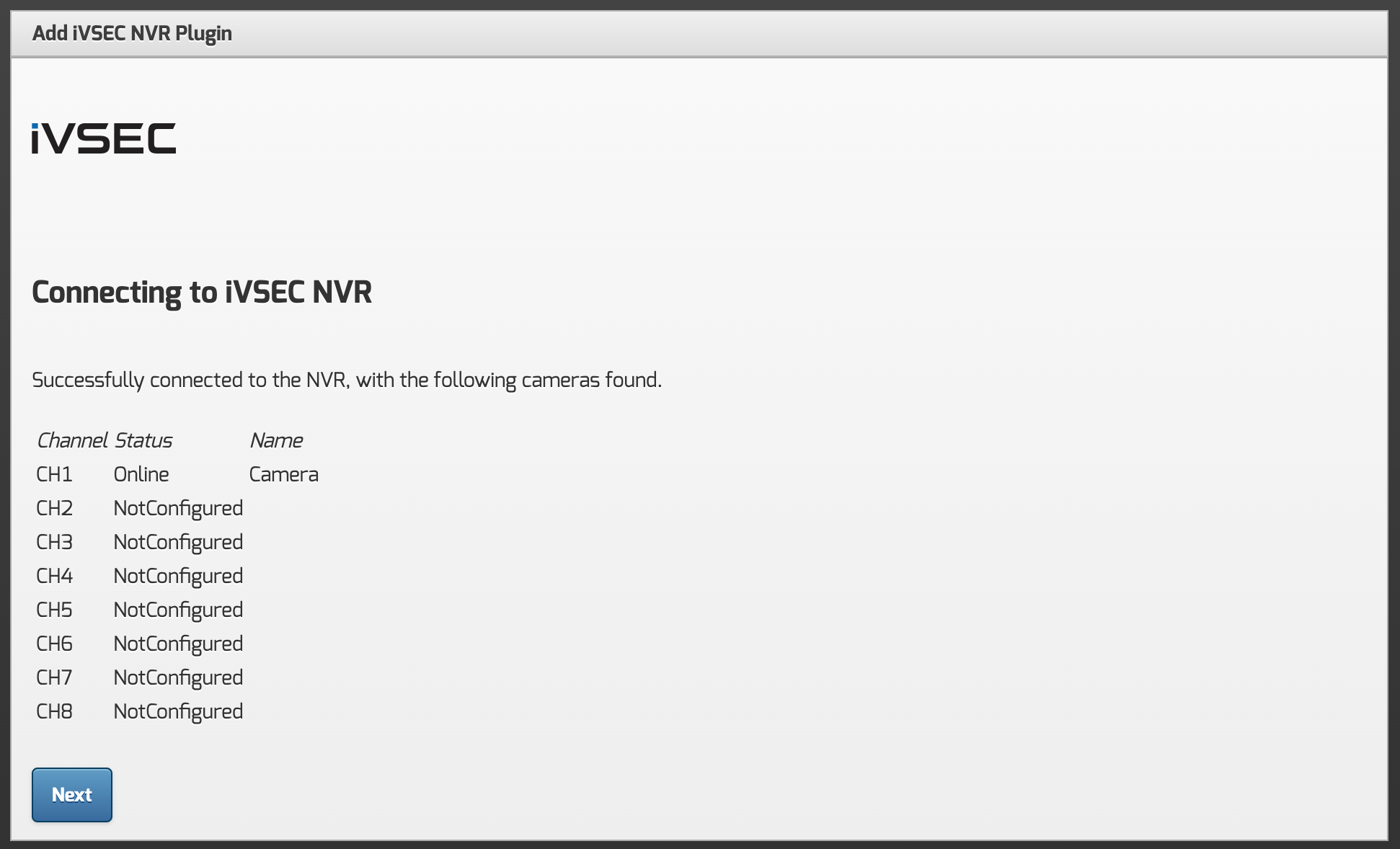

Step 3 - The automationbridge will then attempt to connect to the NVR, to verify the details and retrieve the list of cameras, if successful will then confirm and show the list of cameras available.

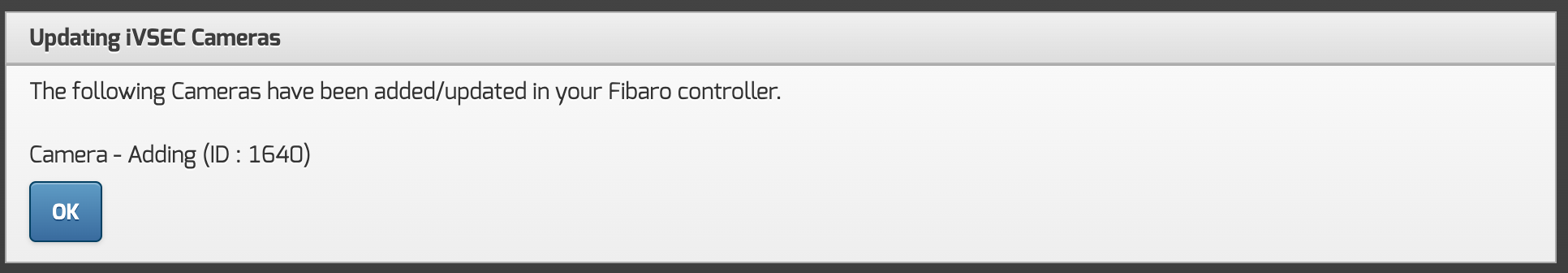

Step 4 - Click Next to proceed, the camera(s) will then be added to your controller, if using Fibaro will also be added there, click OK to complete the setup.

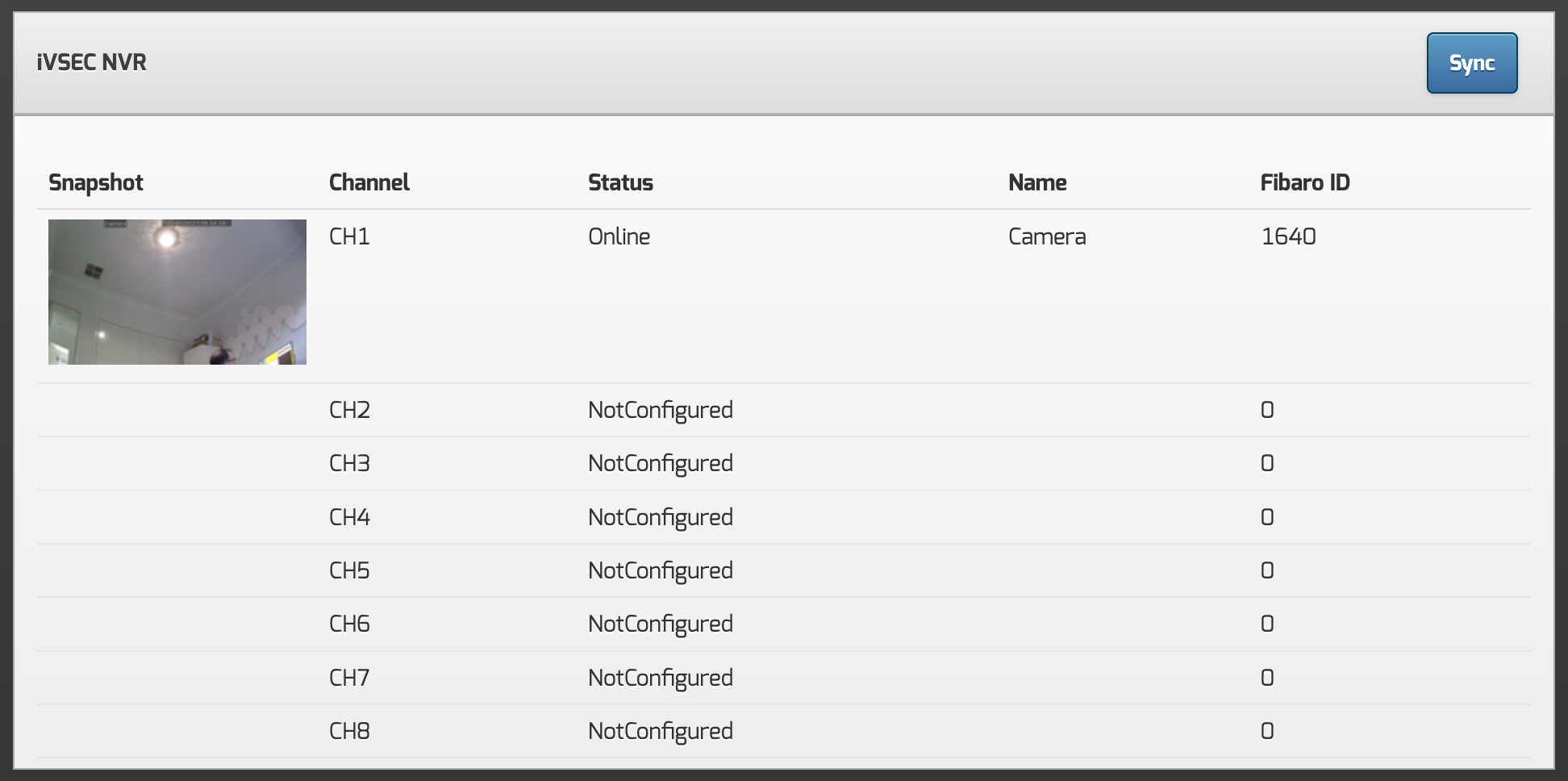

You will then be taken to the settings page for the plugin, from here you can view the snapshots, and also perform a Sync, which will add/remove cameras and update camera names as required from the NVR when changes are made.

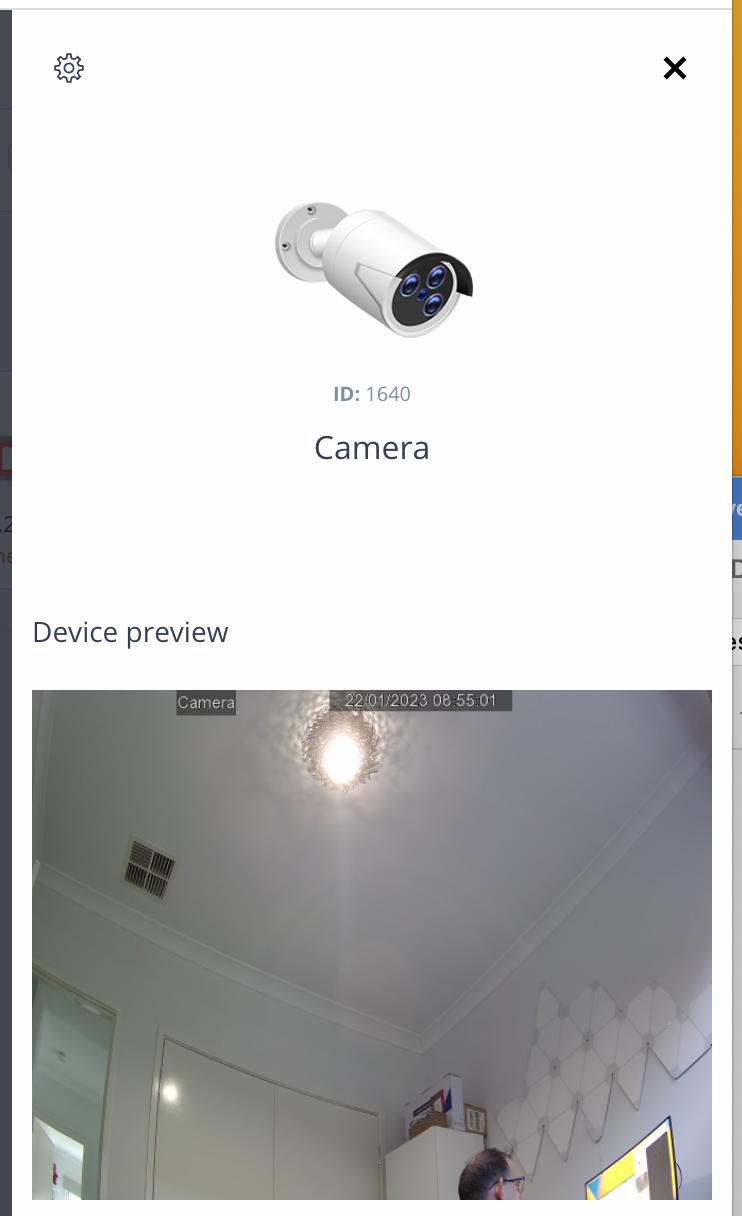

If you are using Fibaro, you will find the camera object has been added for each camera in the NVR.
You can now return to the main page of the automationbridge, and enable the camera(s) as required for use in HomeKit.
