Setting up the Shelly (G1 & G2) Plugin : Skaro Technology

✅ Fibaro HC3/HC3L

✅ Standalone

Please note that this plugin replaces the previous Shelly plugin, if you have been using the old plugin, you must disable it and then setup your devices again with this new plugin

Generation 1
• Shelly 1
• Shelly 1PM
• Shelly 2.5
• Shelly RGBW 2
• Shelly Dimmer 2
• Shelly EM
• Shelly 3EM
• Shelly Uni

Generation 2 (authorisation not currently supported)
• Shelly Plus 1
• Shelly Plus 1 PM
• Shelly Plus 2 PM (Relay & Cover Modes)
• Shelly Pro 1
• Shelly Pro 1 PM
• Shelly Pro 2
• Shelly Pro 2 PM (Relay & Cover Modes)
• Shelly Pro 3
• Shelly Pro 4 PM
• Shelly Pro Dimmer 1PM

• Shelly Pro Dimmer 2PM
• Shelly Plus i4
• Shelly Plus i4DC
• Shelly Plus RGBW PM

• Shelly Pro 3EM
• Shelly Pro EM-50

Generation 3 (authorisation not currently supported)
• Shelly 1 Mini

and the following battery devices :
• Shelly H&T
• Shelly Plus H&T
• Shelly Door/Window 2
• Shelly Button 1
• Shelly Motion 2
• Shelly Flood

* Before you being this process, please ensure that you have connected your Shelly modules to your home WiFi, and have then setup and tested in the Shelly app, and have been assigned a static IP address in your network.

It is also important that each Shelly device has been given a device and channel name(s) via the App or directly via a web-browser, and updated to the latest firmware

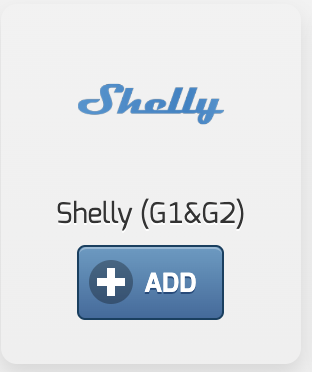

Step 1 - Click the Add button under the Shelly logo to begin.

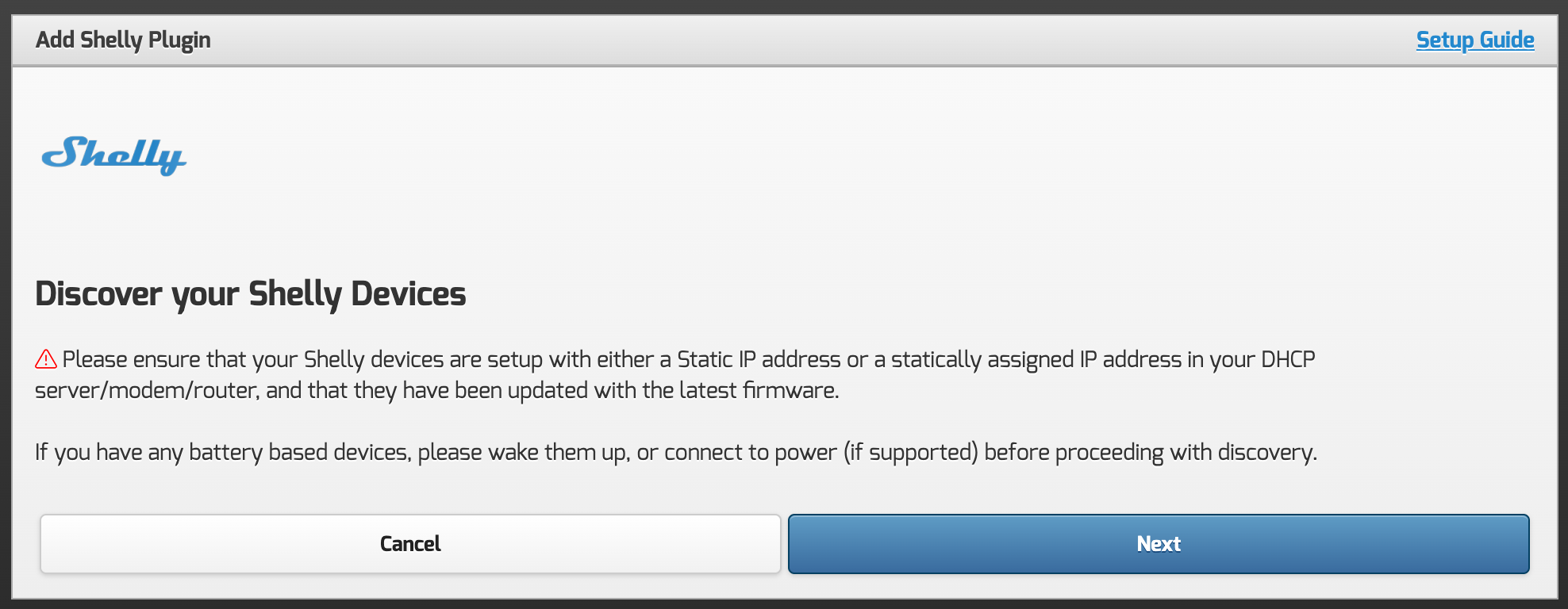

Step 2 - The plugin will then search the local network for your shelly devices, click Next to proceed.

If no shelly modules are discovered, please check the settings on each of your Shelly modules, to make sure network discovery is enabled (Gen 1 devices only)

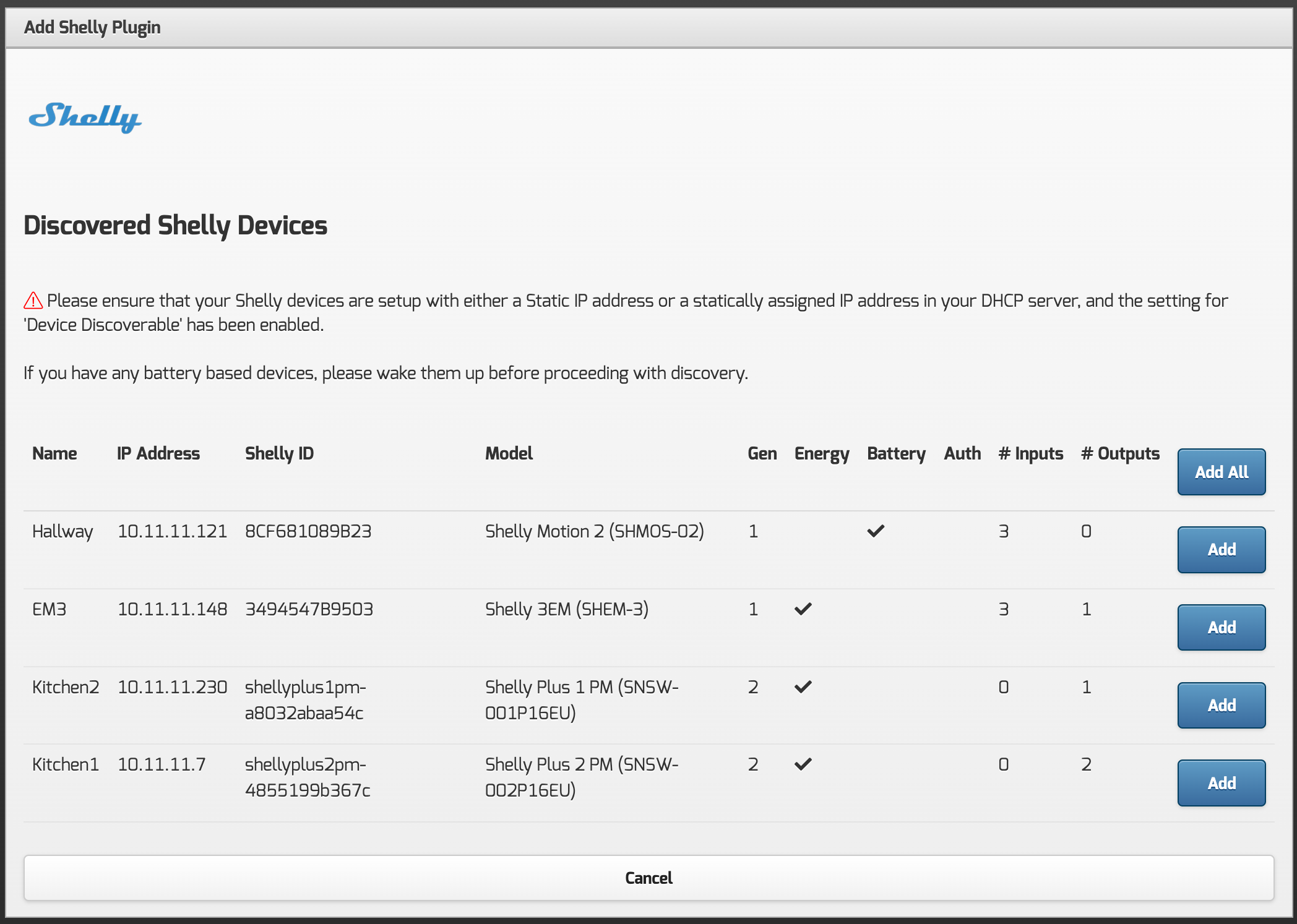

Step 3 - All discovered Shelly modules will then be shown as below.

If they have authentication enabled, you will need to click the Authenticate button to enter the username and password, only then, can these devices be added. (Please note at this time, authentication for Gen2 devices is NOT supported)

Step 4 - Click the Add button on your first Module to be added, further modules can be added later from the Plugin settings page, or click the Add All button to add them all at once

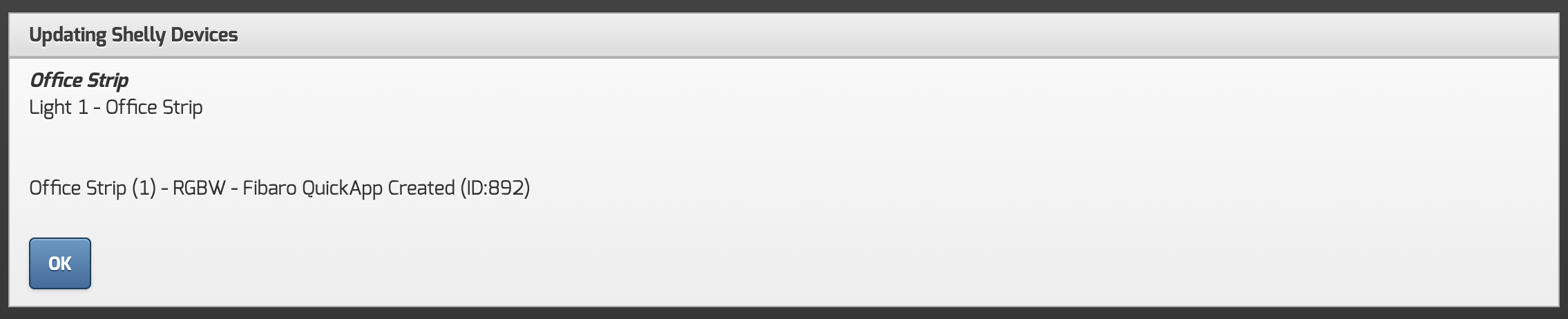

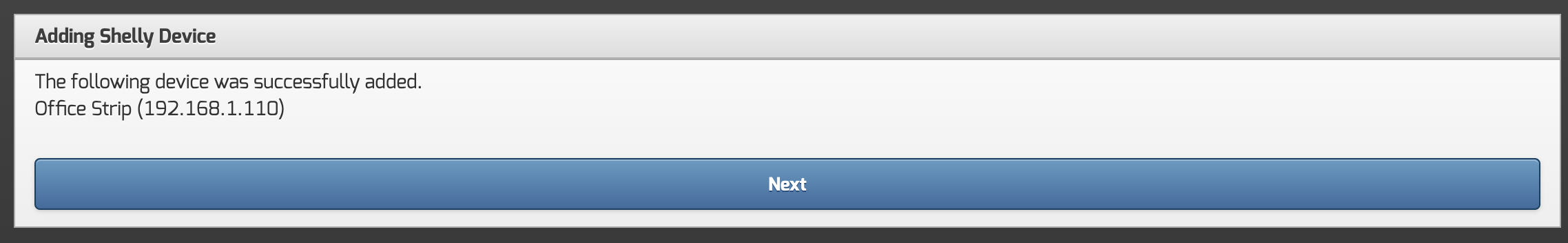

Step 5 - The module(s) will then be added, and enabled in your Fibaro controller.

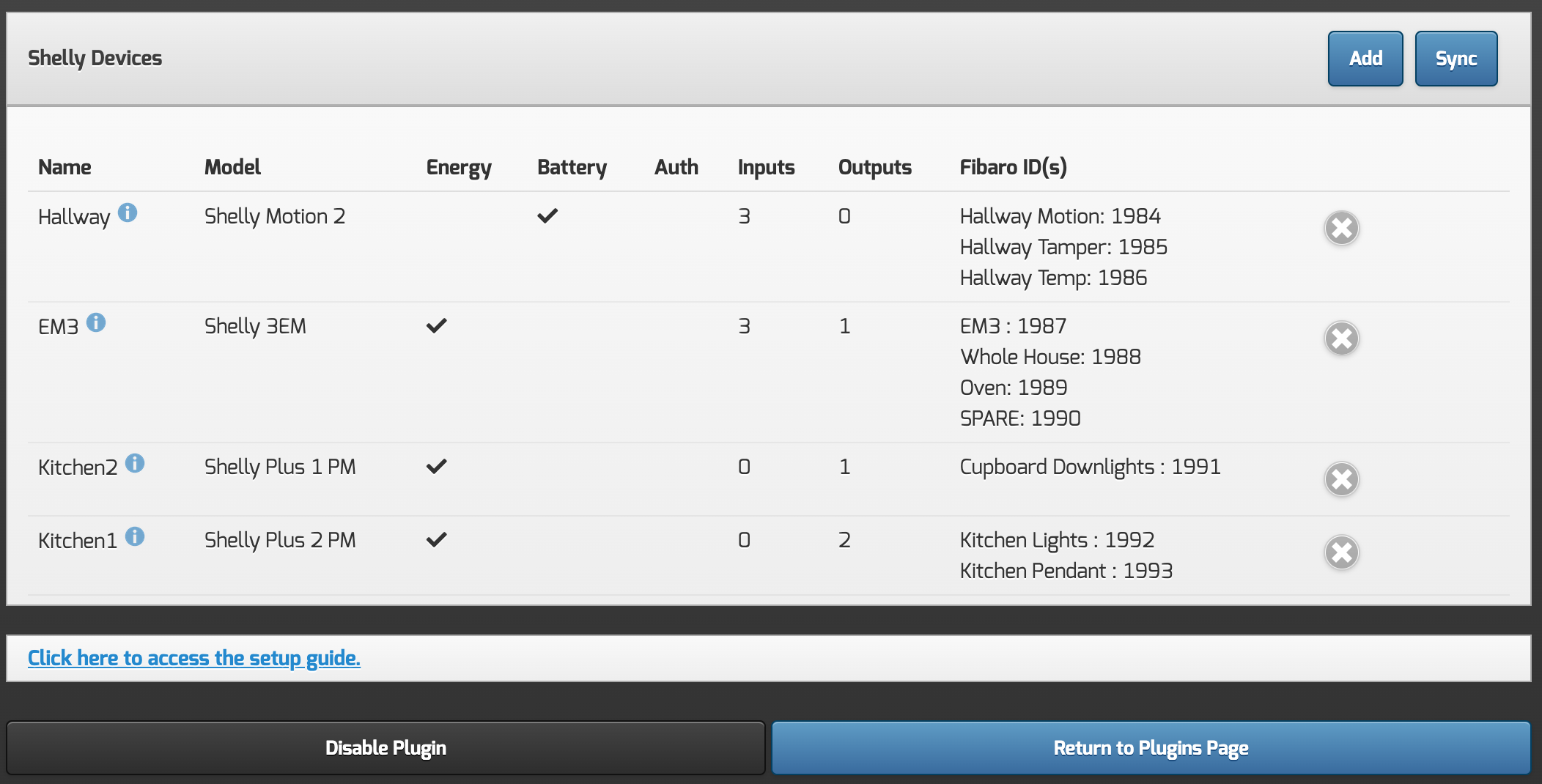

Clicking OK on this final step will take you to the Settings page of the plugin, from here you can add/remove modules, and perform a Sync, which will update to reflect any module name changes.

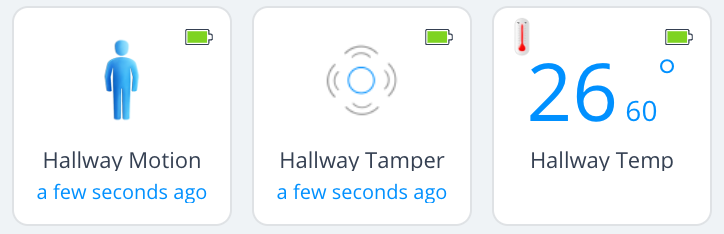

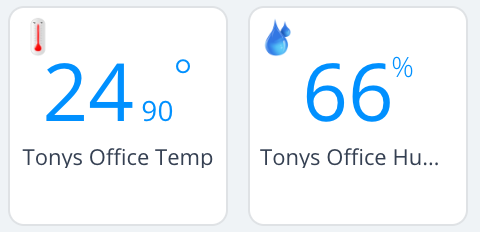

If you are running the Fibaro HC3 controller you will find the following QuickApp Devices have been created for each of the Shelly Modules, and their various inputs & outputs, for example ;

Shelly 1, Plus 1, Pro 1, Pro 2, Pro 3 (for each available channel/output)

Shelly 1PM, Pro 1PM, 2.5, Plus 2 PM, Pro 2PM, Pro 4PM (for each available channel/output, showing energy usage/consumption)

Shelly RGBW2 (RGBW Device)

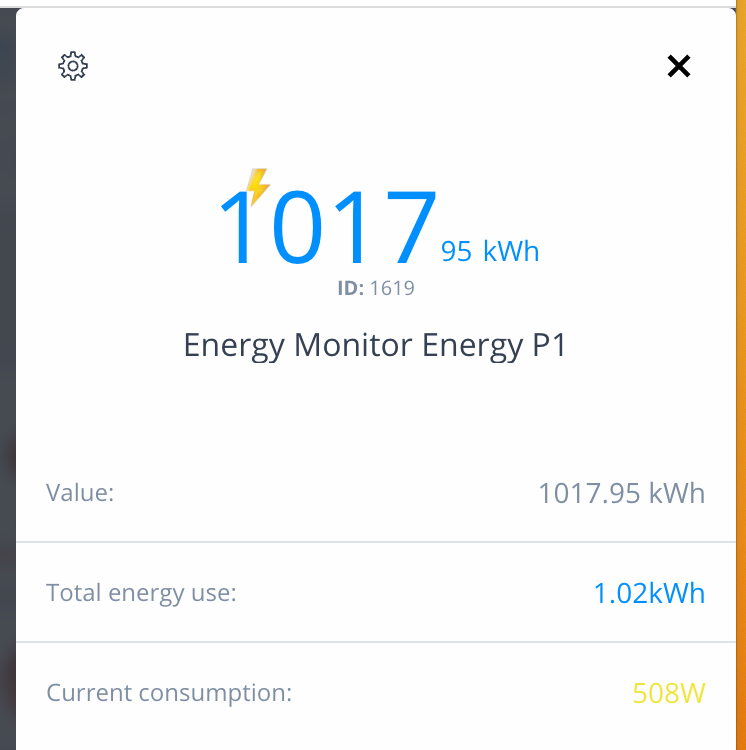

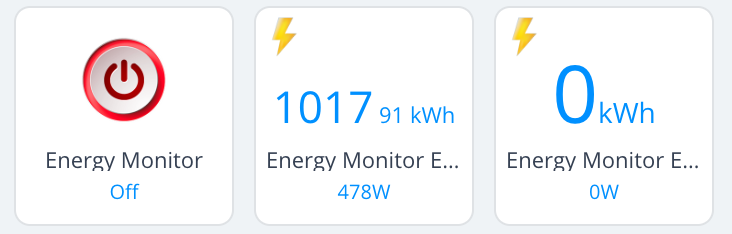

Shelly EM (1 Channel & 2 Energy Channels, for each available channel/output, showing energy usage/consumption)

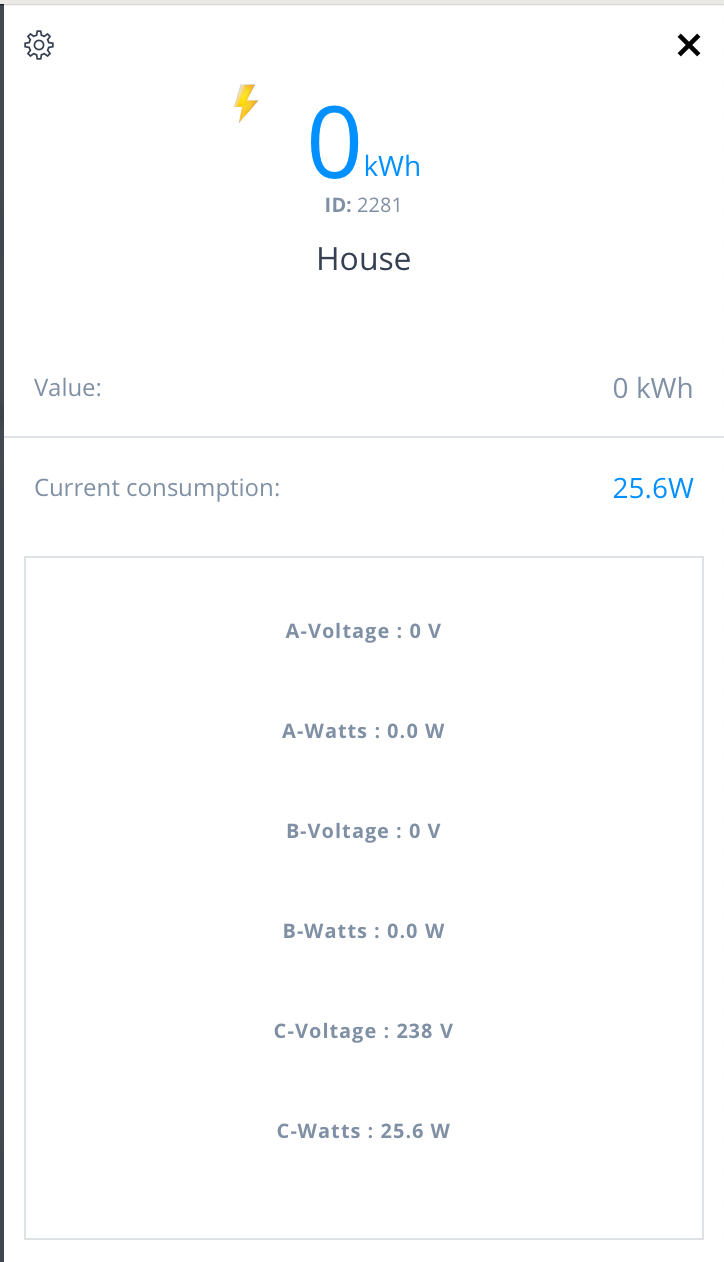

- EM3 will show one switch and 3x energy channels
