✅ Fibaro HC3 (v5.040 or greater)
✅ Fibaro HC2

✅ Fibaro HCL


The Automate Pulse2 plugin will quickly add your Rollease Blinds to your Fibaro controller.


* Before you being this process, please ensure that you have connected your Automate Pulse2 Hub unit to your home network and setup and configured your blinds via the Pulse2 App. Also note that this plugin has been developed and tested with the Automate Li-Ion blind motors, different blind motors may require further changes.


This guide assumes that you have already purchased the Automate Pulse2 plugin from within the automationbridge interface.


Step 1 - Click the Add button under the Pulse2 logo to begin.

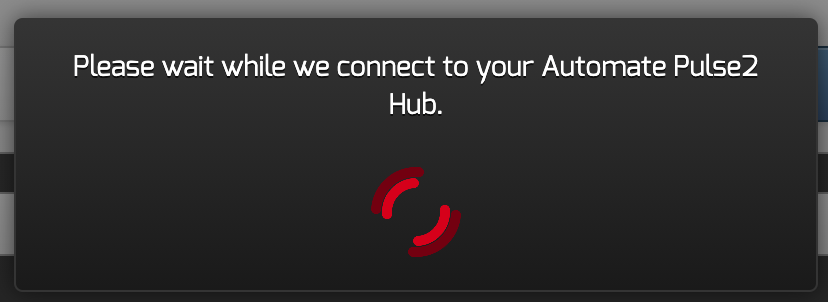

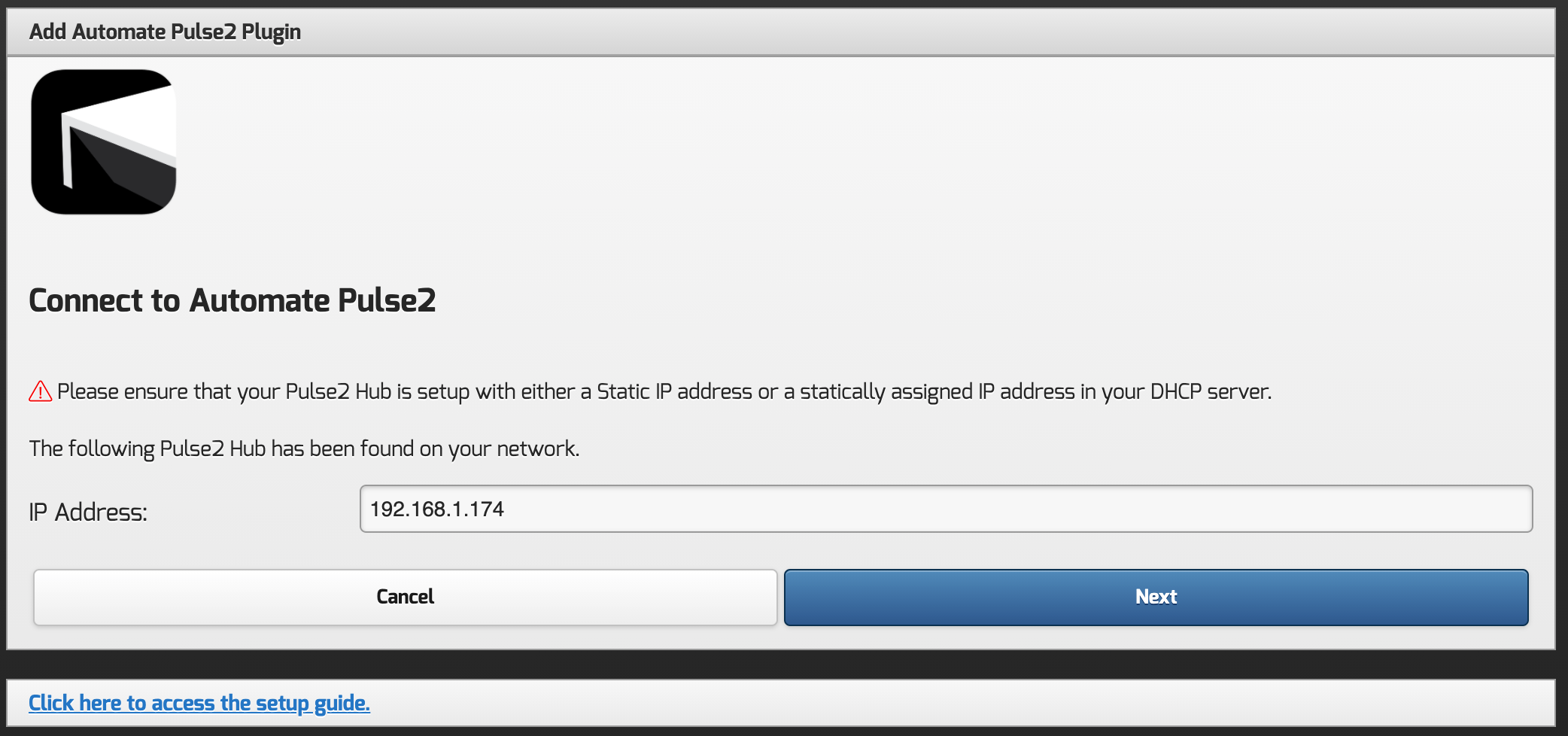

Step 2 - The automationbridge will now try and locate the Pulse2 Hub on your network, if it was not automatically found, please enter its IP address then click Next.

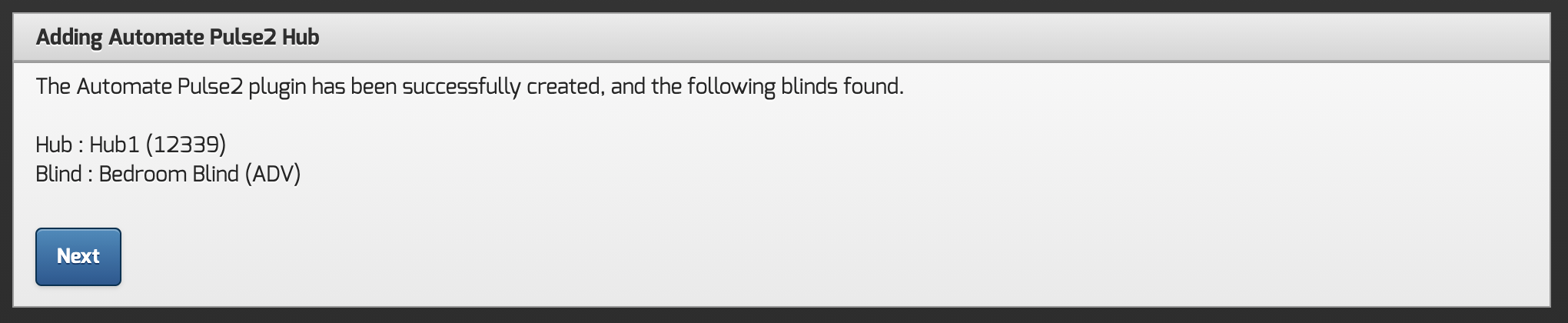

Step 3 - Next the bridge will retrieve the list of blinds from the Pulse2 Hub and will confirm like below, click next to have them added to the Fibaro Controller.

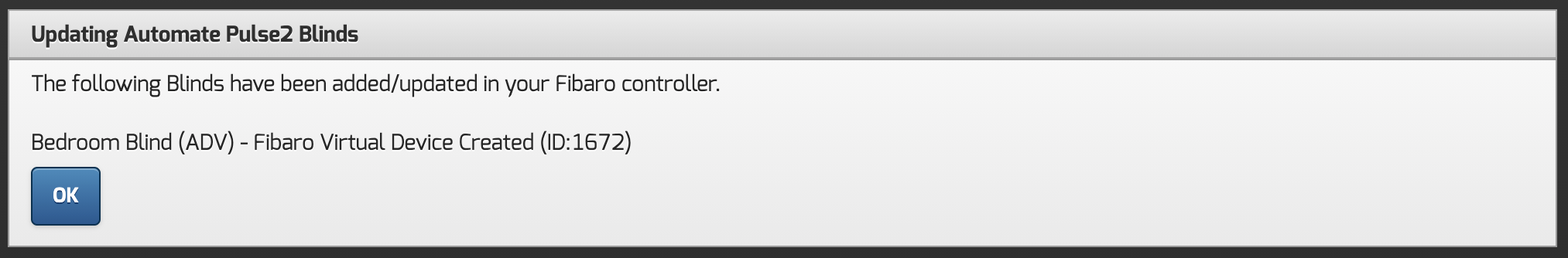

Step 4 - The Blinds will then be added to the Fibaro Controller and will be confirmed like so, for Fibaro HCL/HC2.

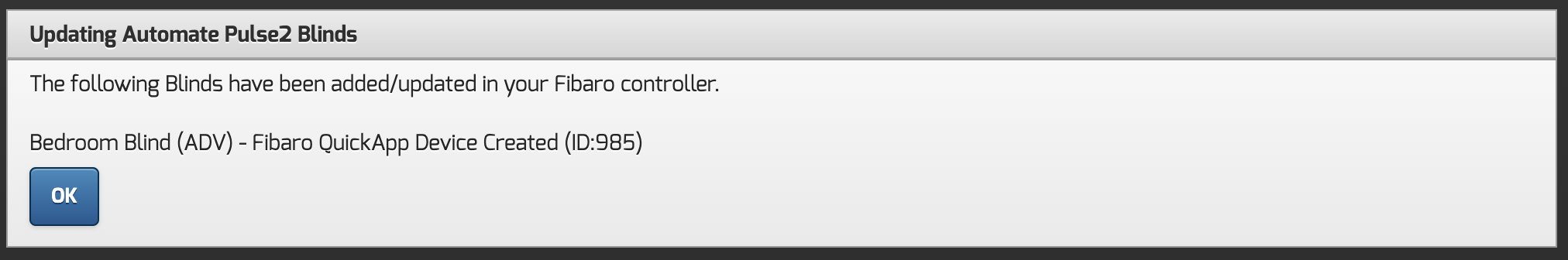

and for Fibaro HC3

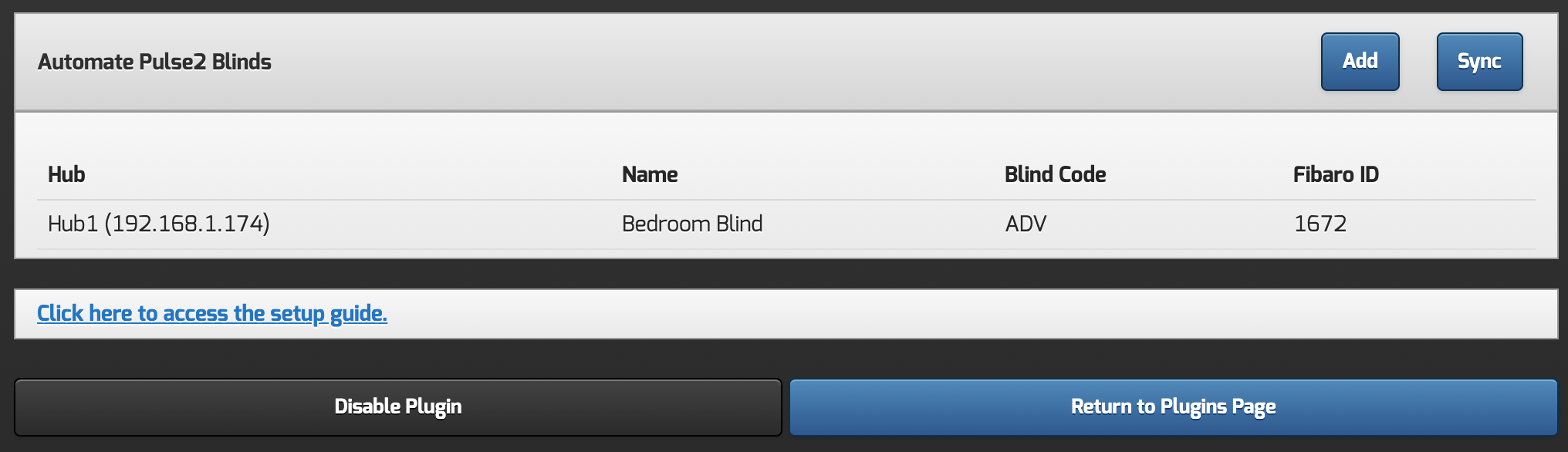

This completes the setup process and you will now be redirected to the Settings page for the plugin, from here you can perform a Sync, this will add in any new blinds that you may add to Pulse2 Hub, along with picking up and name changes.

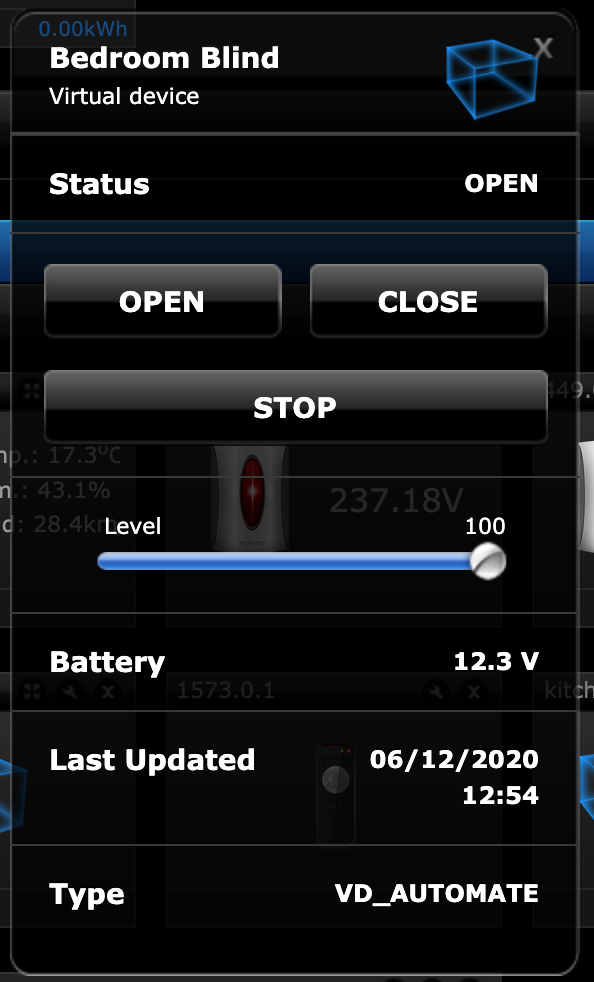

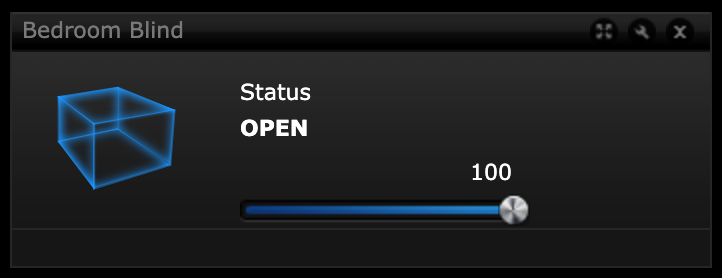

If you are running the Fibaro HCL/HC2 controller, you will find a new Virtual Device has been added for each blind like so, allowing you control of the blind, complete with positioning. It will also show the battery level.

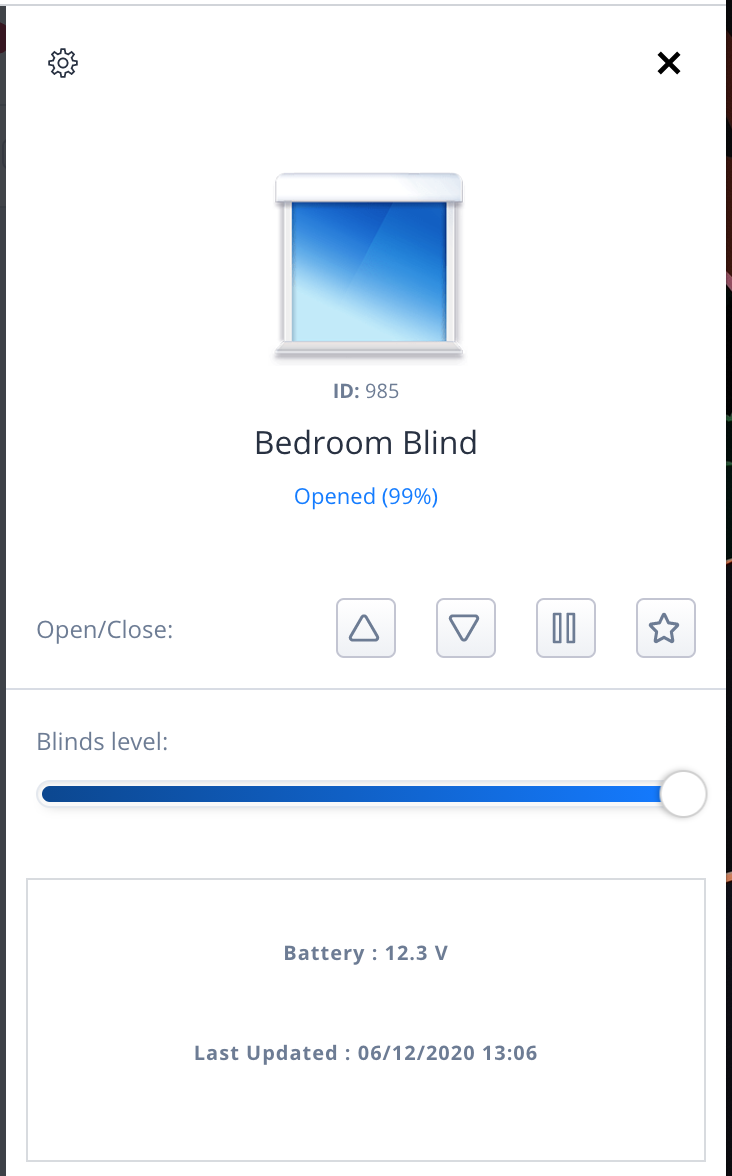

If you are running the Fibaro HC3 Controller, a new QuickApp has been create for each blind,allowing you control of the blind, complete with positioning. It will also show the battery level.
