✅ Fibaro HC3 (v5.040 or greater)
✅ Fibaro HC2
✅ Fibaro HCL
The Soma Connect plugin will quickly add your Soma Blinds to your Fibaro controller.
* Before you being this process, please ensure that you have connected your Soma Connect unit to your home network and setup and configured your blinds via the Smart Shades app.
This guide assumes that you have already purchased the Soma Connect plugin from within the automationbridge interface.

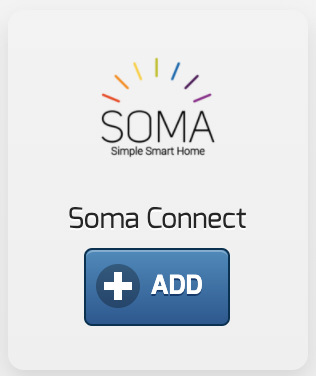

Step 1 - Click the Add button under the Soma Connect logo to begin.

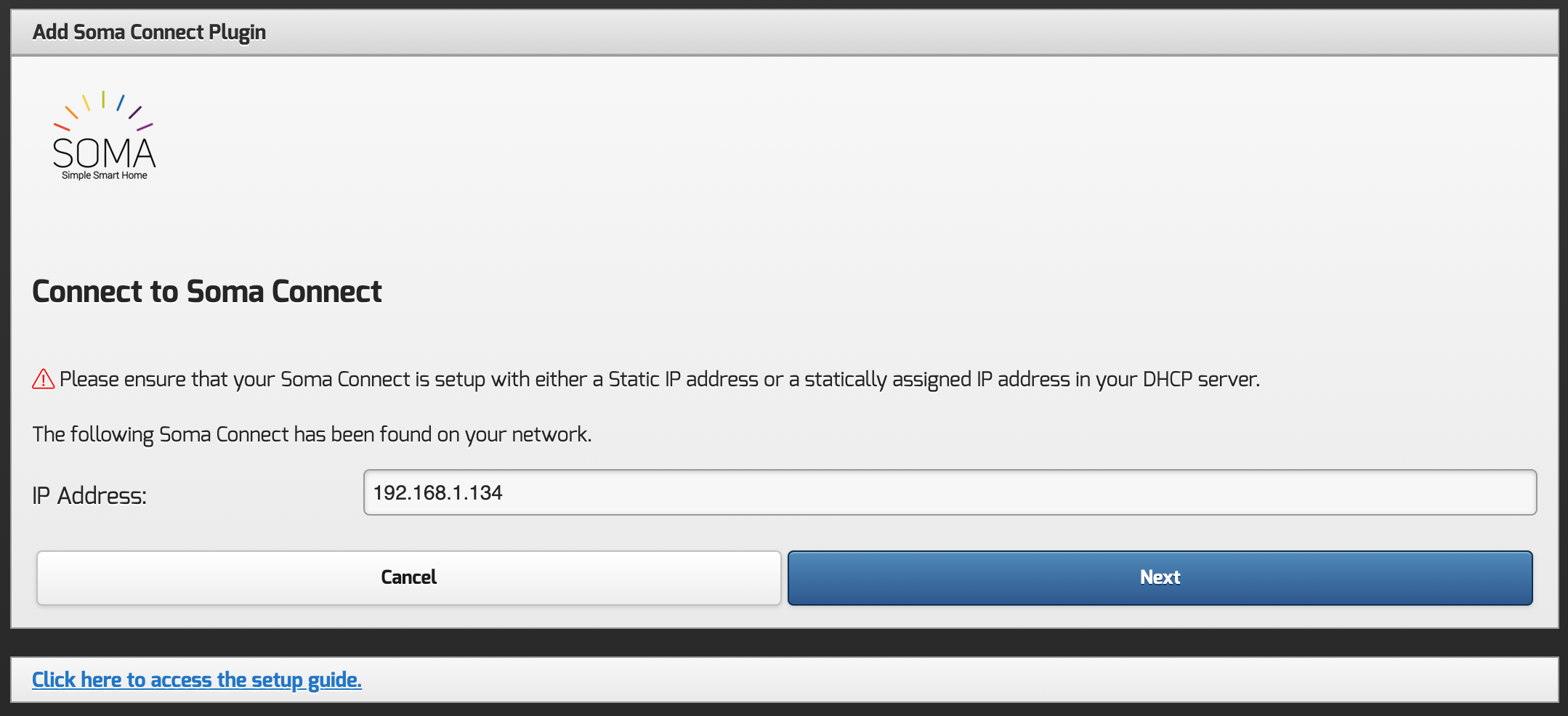

Step 2 - The automationbridge will now try and locate the Soma Connect device on your network, if it was not automatically found, please enter its IP address then click Next.

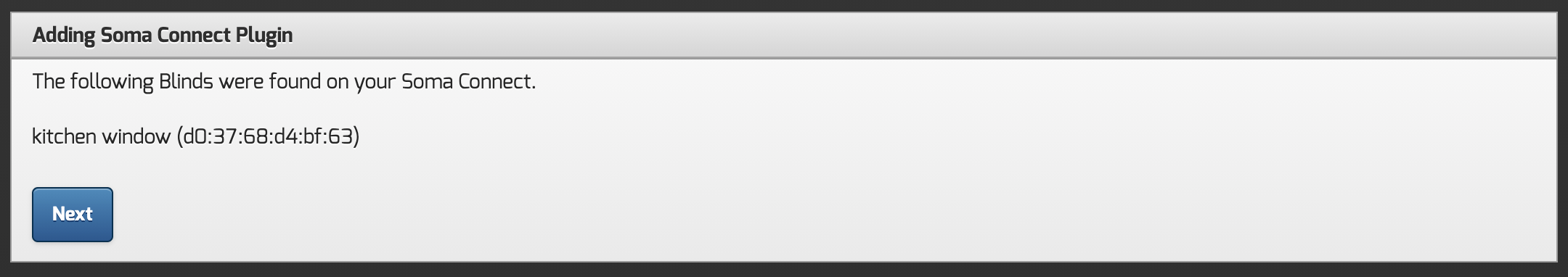

Step 3 - Next the bridge will retrieve the list of blinds from the Soma Connect and will confirm like below, click next to have then added to the Fibaro Controller.

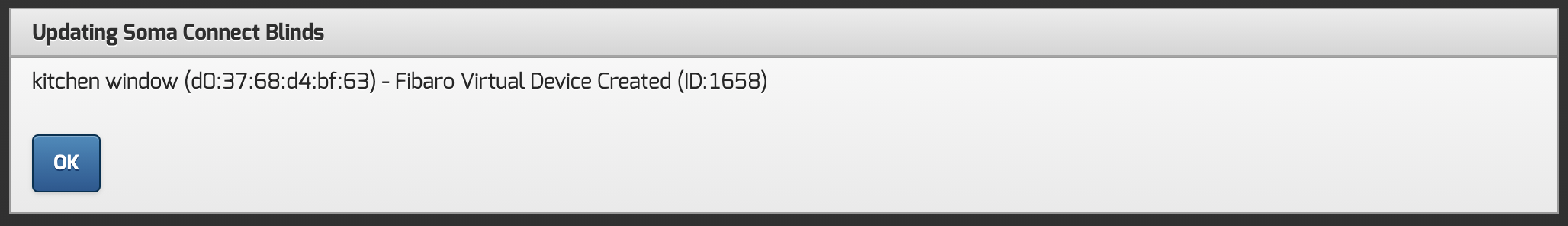

Step 4 - The Blinds will then be added to the Fibaro Controller and will be confirmed like so, for Fibaro HCL/HC2

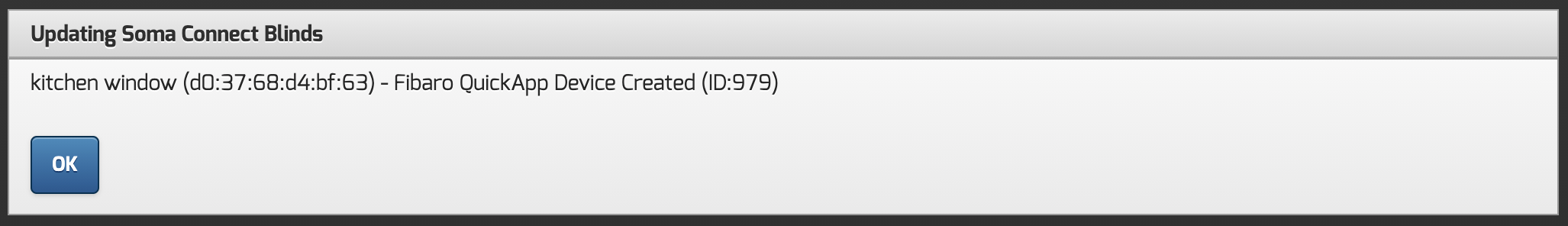

and for Fibaro HC3

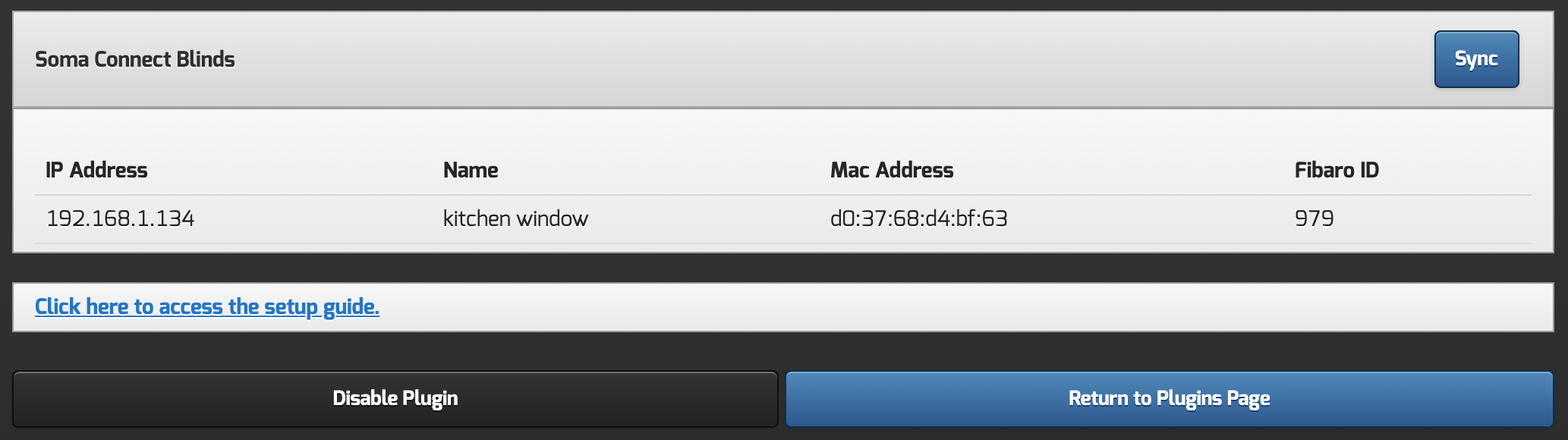

This completes the setup process and you will now be redirected to the Settings page for the plugin, from here you can perform a Sync, this will add in any new blinds that you may add to Soma Connect, along with picking up and name changes.

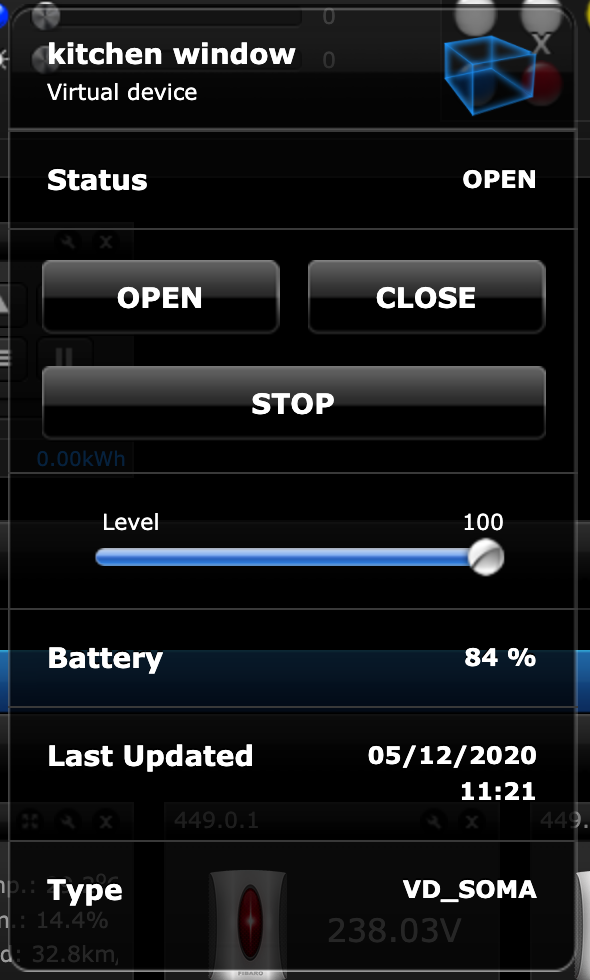

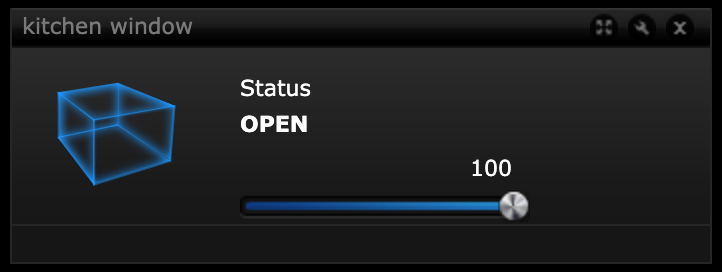

If you are running the Fibaro HCL/HC2 controller, you will find a new Virtual Device has been added for each blind like so, allowing you control of the blind, complete with positioning. It will also show the battery level.

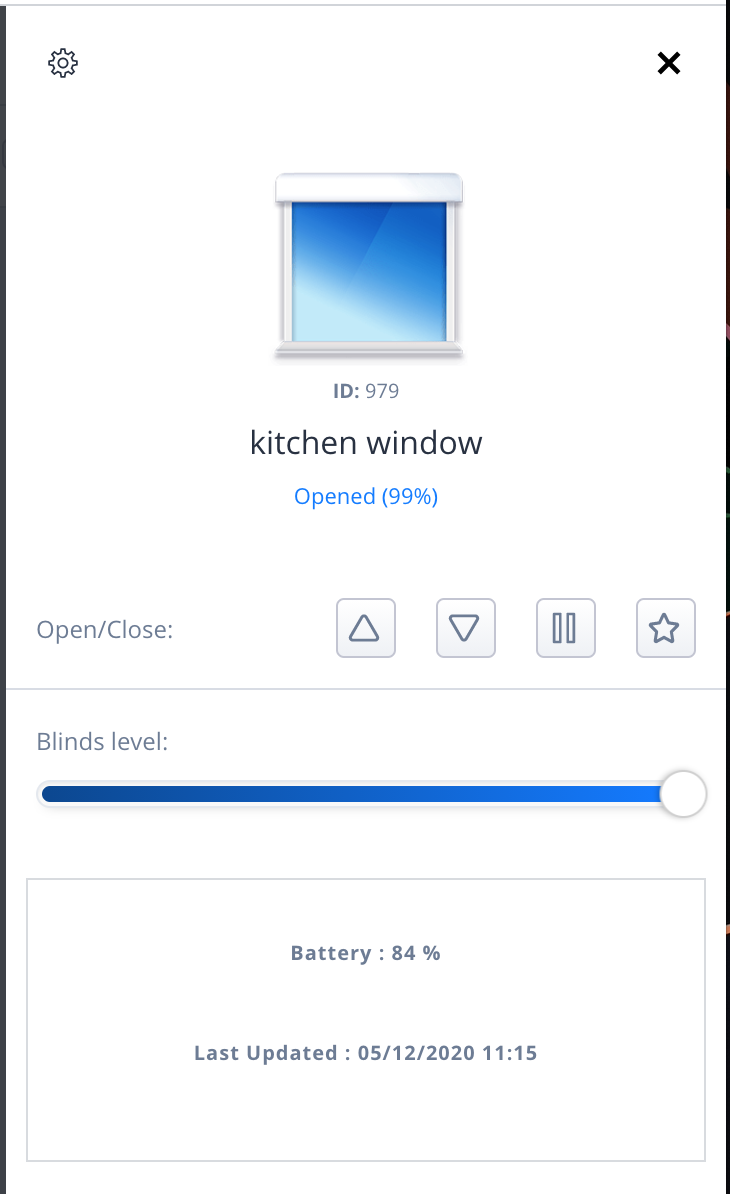

If you are running the Fibaro HC3 Controller, a new QuickApp has been create for each blind,allowing you control of the blind, complete with positioning. It will also show the battery level.
