✅ Fibaro HC2/HCL
✅ Fibaro HC3/HC3L
✅ Standalone
This guide assumes that you have already purchased the iZone plugin from within the automationbridge interface, and that you have setup the iZone/MyZone controller on your network and have it working using the iZone app on your phone.

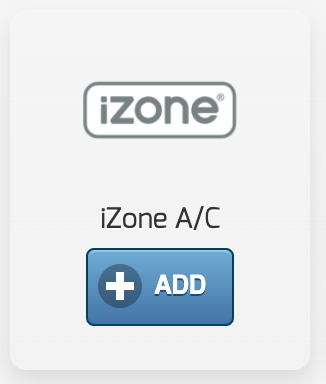

Step 1 - Add the plugin via the Network Devices/Plugins page

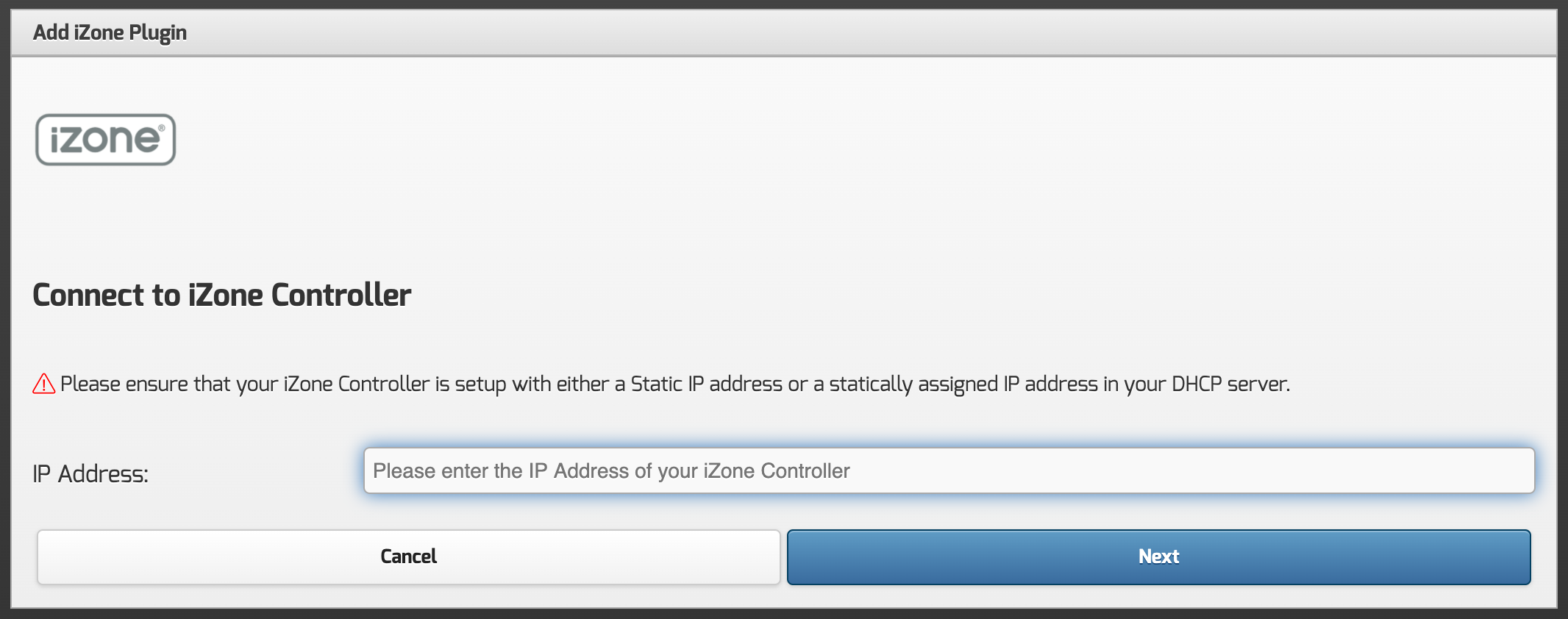

Step 2 - Enter the IP address of the iZone controller, and then click next.

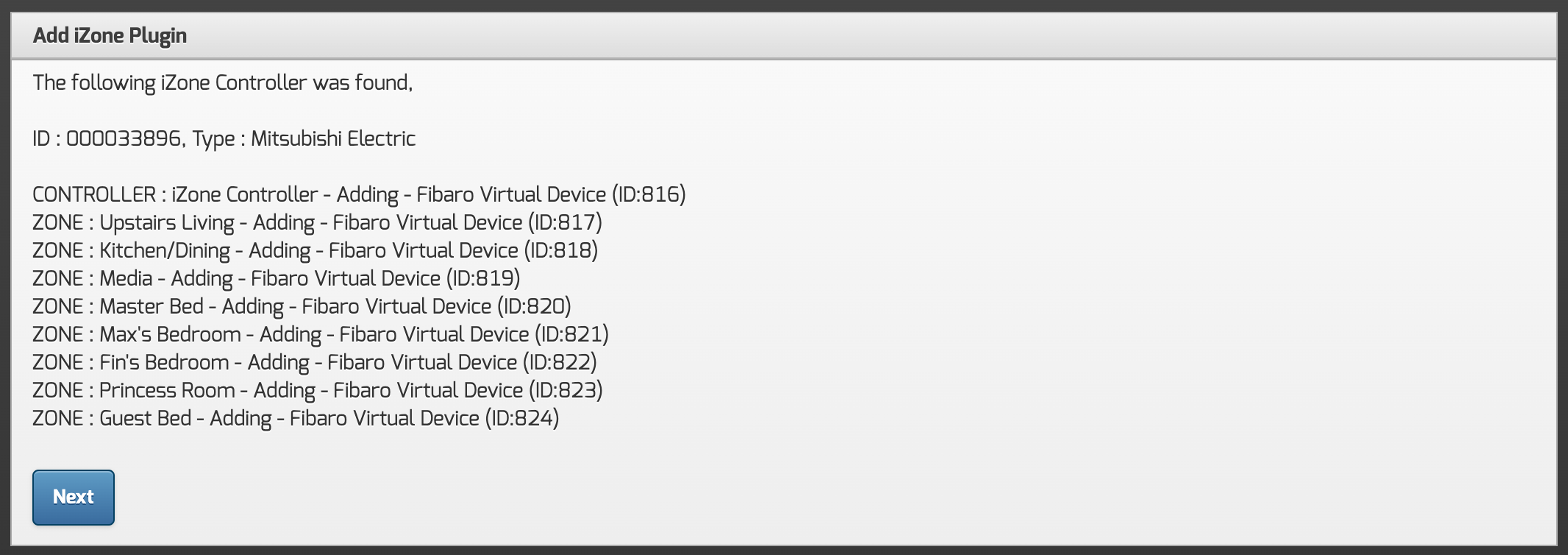

Step 3 - The automationbridge will then connect to the controller, and retrieve the available zones. If successful you will presented with a screen like so, listing the controller and zones.

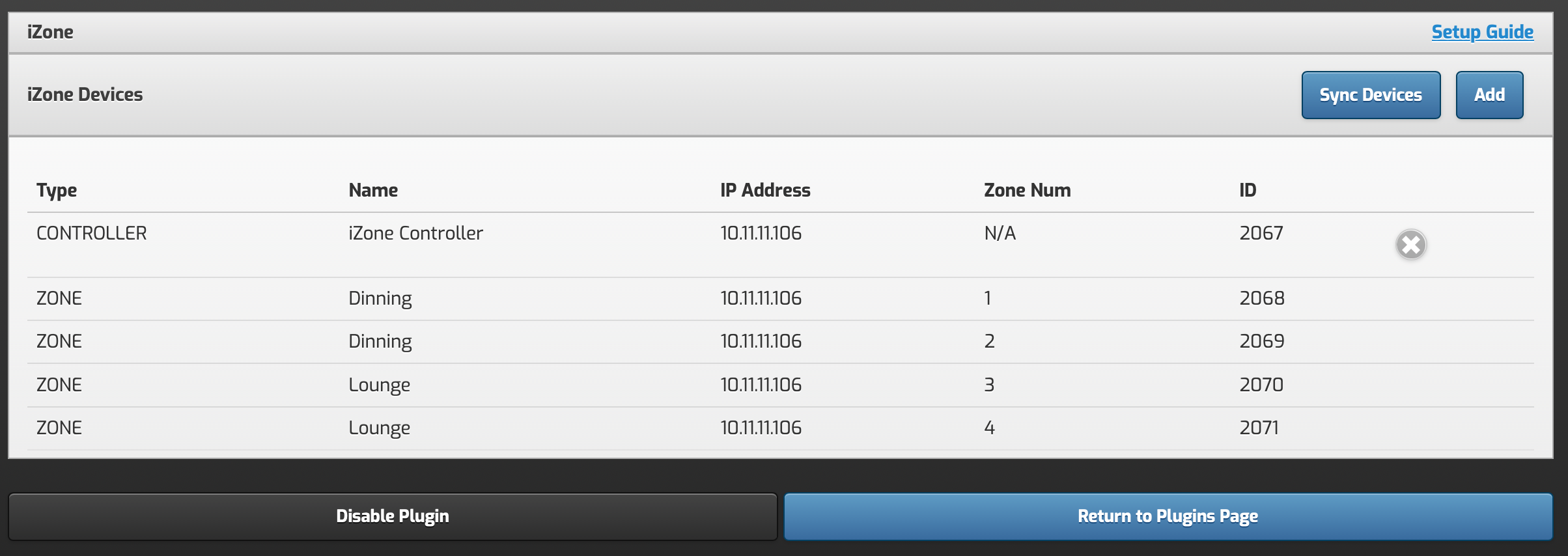

Step 4 - Click Next and the Fibaro devices will be created, and you will be taken to the Settings page for the plugin. Here you can perform a Sync, to update the Zone names if changed, and to also add additional controllers.

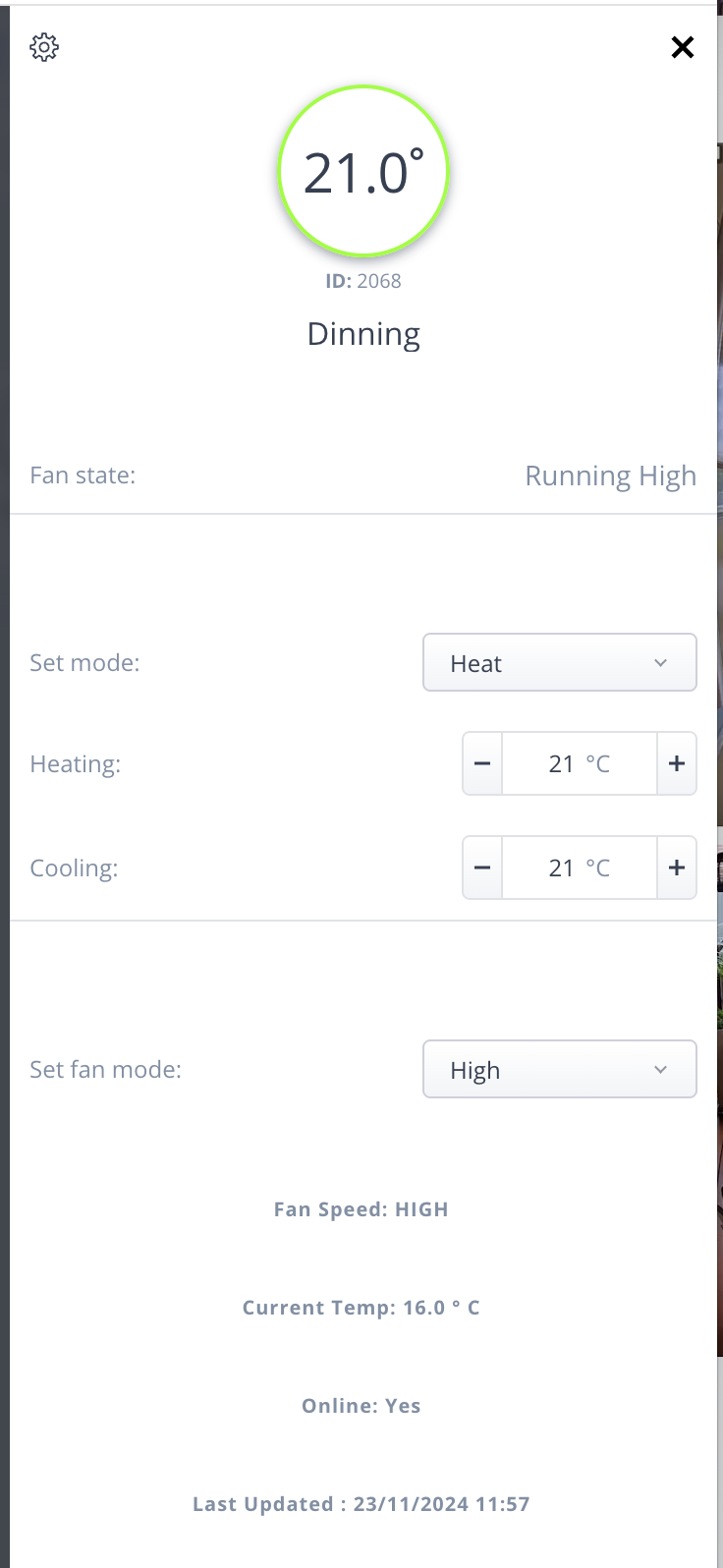

If you are using the Fibaro HC3 controller, you will find that native HVAC devices have been added. For example,

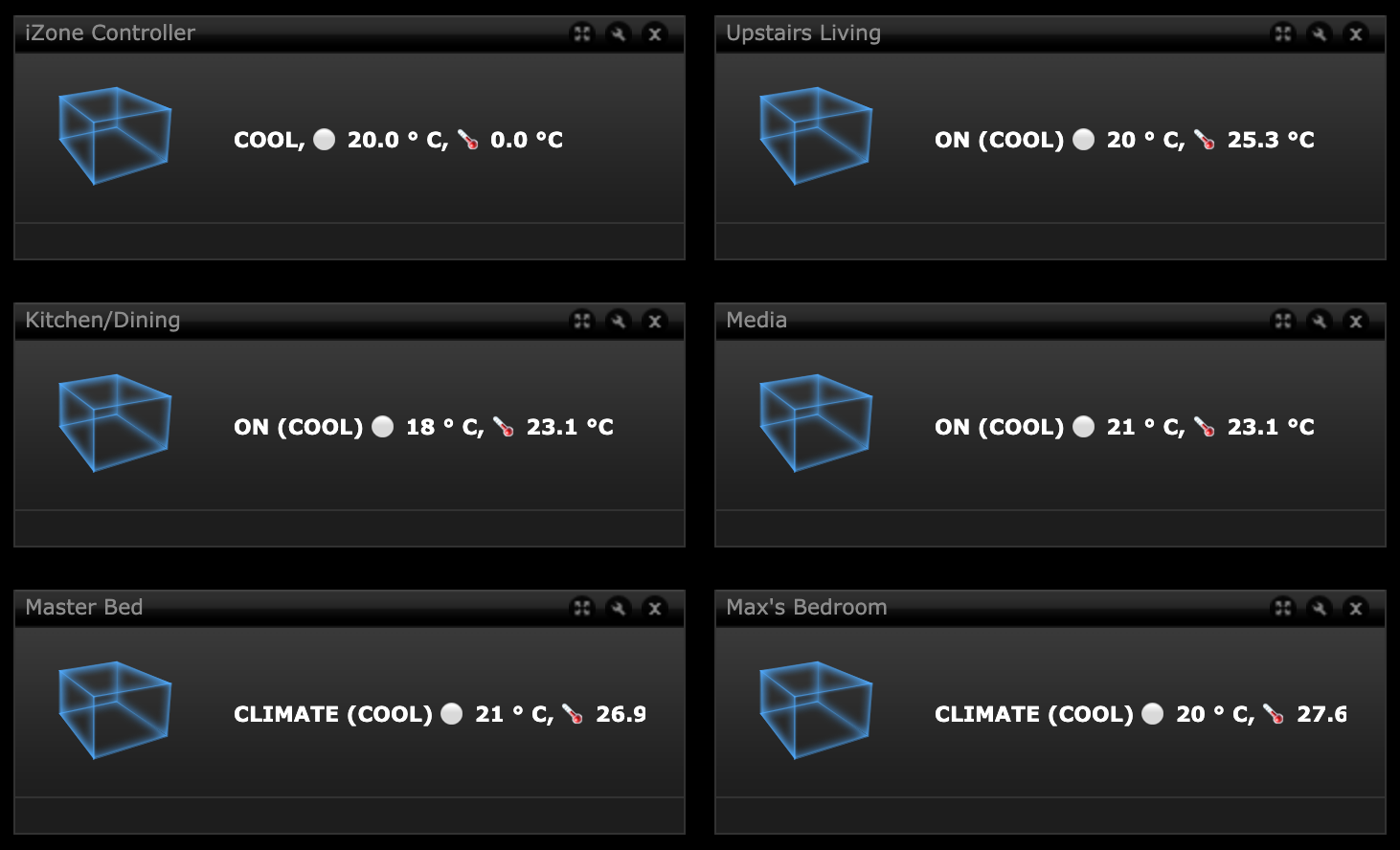

If you are using a Fibaro HCL/HC2 controller, you will find the Virtual Devices have been created, for example.

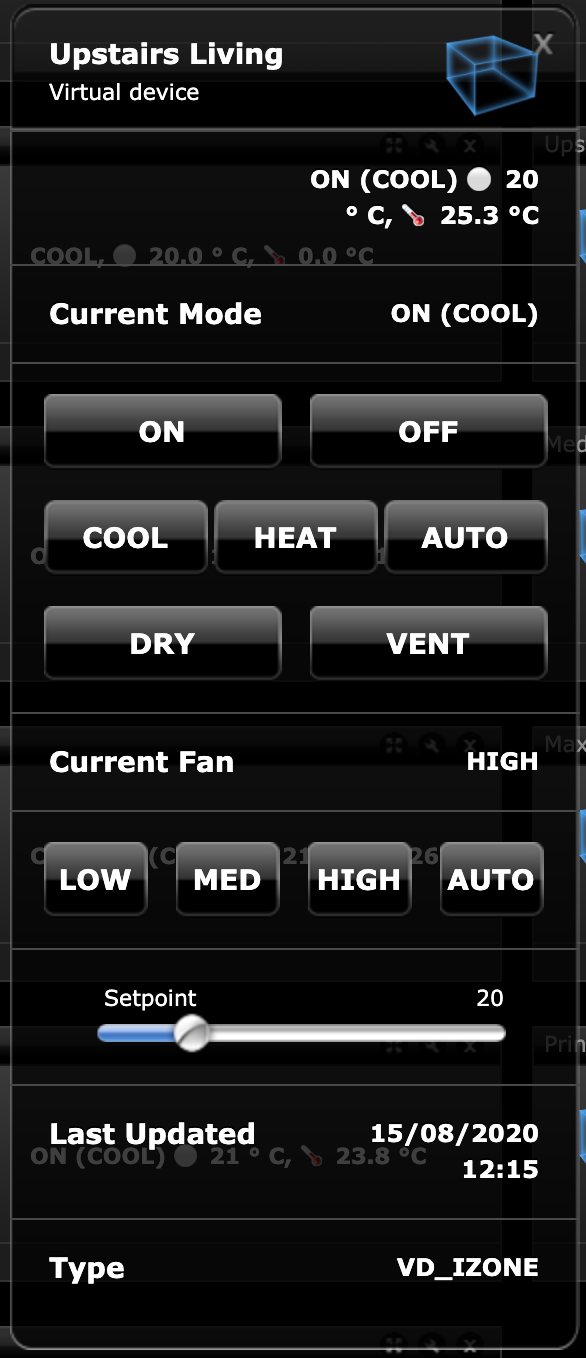

There will be a VD for the main iZone controller, and then one for each zone. As the iZone platform can only run in one mode (Heat/Cool/Auto etc) any changes to a zone's mode will action this mode change on the master unit, and subsequently all zones.
Each Zone has its own ON/OFF actions which are the equivalent to the iZone Open/Closed states, along with their own setpoint.
