✅Fibaro HC3/HC3L
✅Fibaro HC2/HCL

The Netatmo plugin will quickly add your weather station and associated modules to your Fibaro controller in 2 clicks, with the ability to see and use the various weather readings in your scenes.

Currently Supported modules are : Indoor Base Station, Outdoor Base Station, Wind Gauge, Rain Gauge & Additional Indoor Module.

* Before you being this process, please ensure that you have connected your Netatmo weather station to your home WiFi, and setup your Netatmo account.

This guide assumes that you have already purchased the Netatmo plugin from within the automationbridge interface.

Step 1 - Click the Add button under the Netatmo logo on the Plugins page.

Step 2 - Click the button to link to your Netatmo account.

Step 3 - Log into your Netatmo account.

Step 4 - Accept the authorisation to link the account to automationbridge.

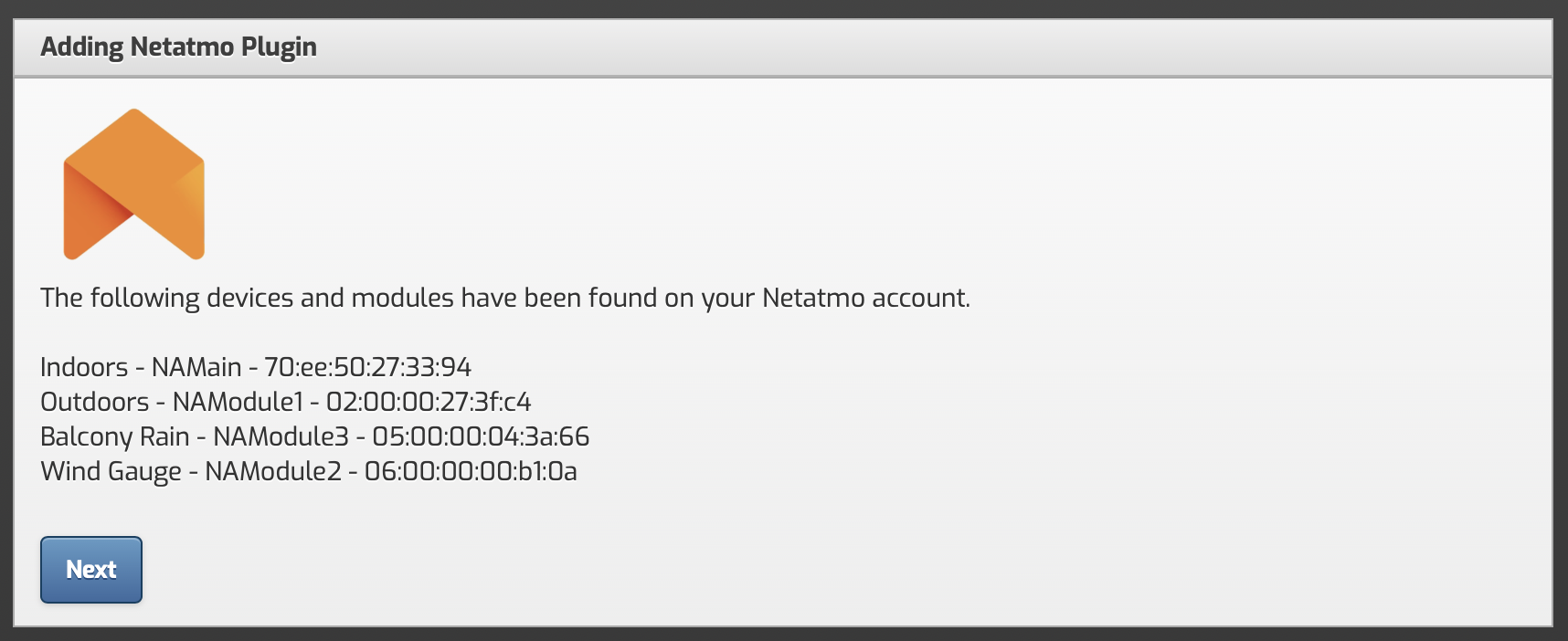

The automationbridge will now connect to the Netatmo cloud and retrieve the available devices.

Click Next to proceed, and the devices will then be added to your controller.

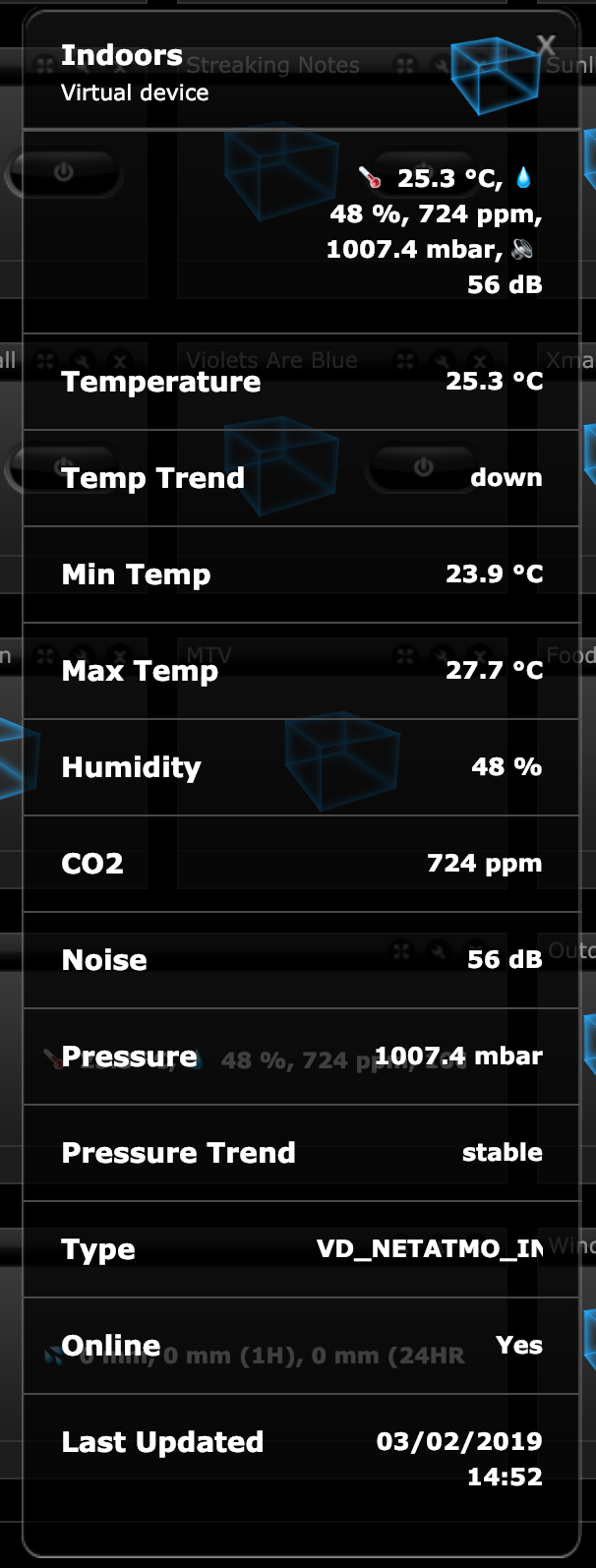

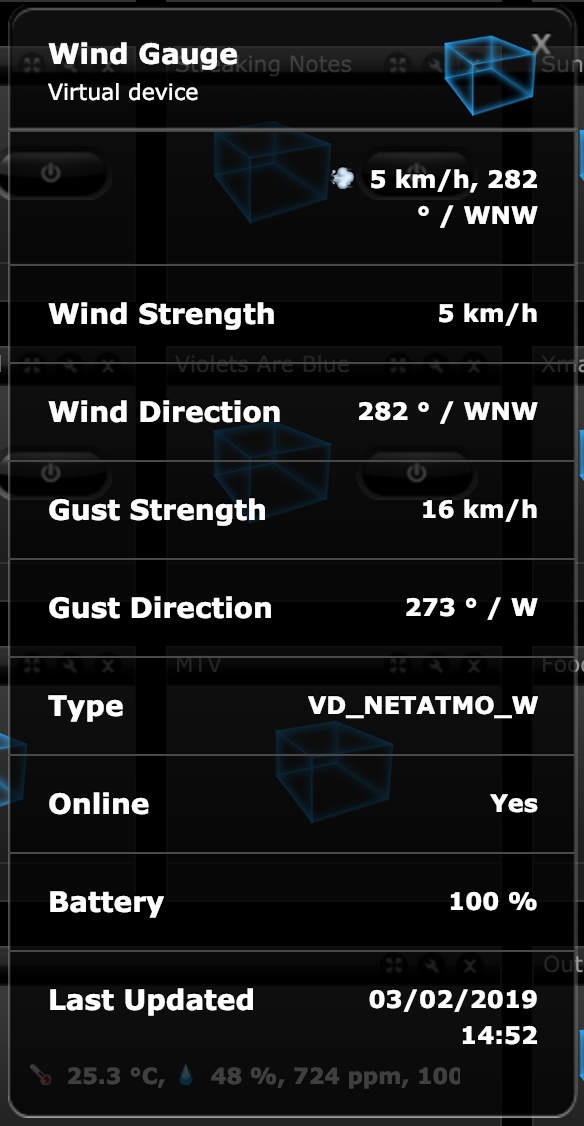

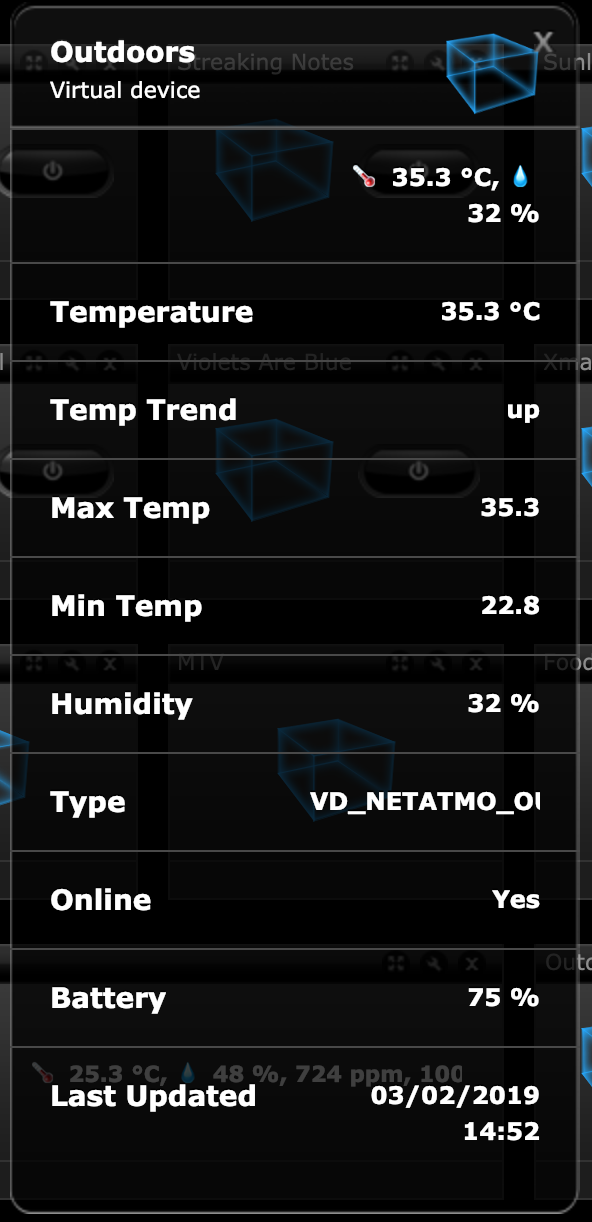

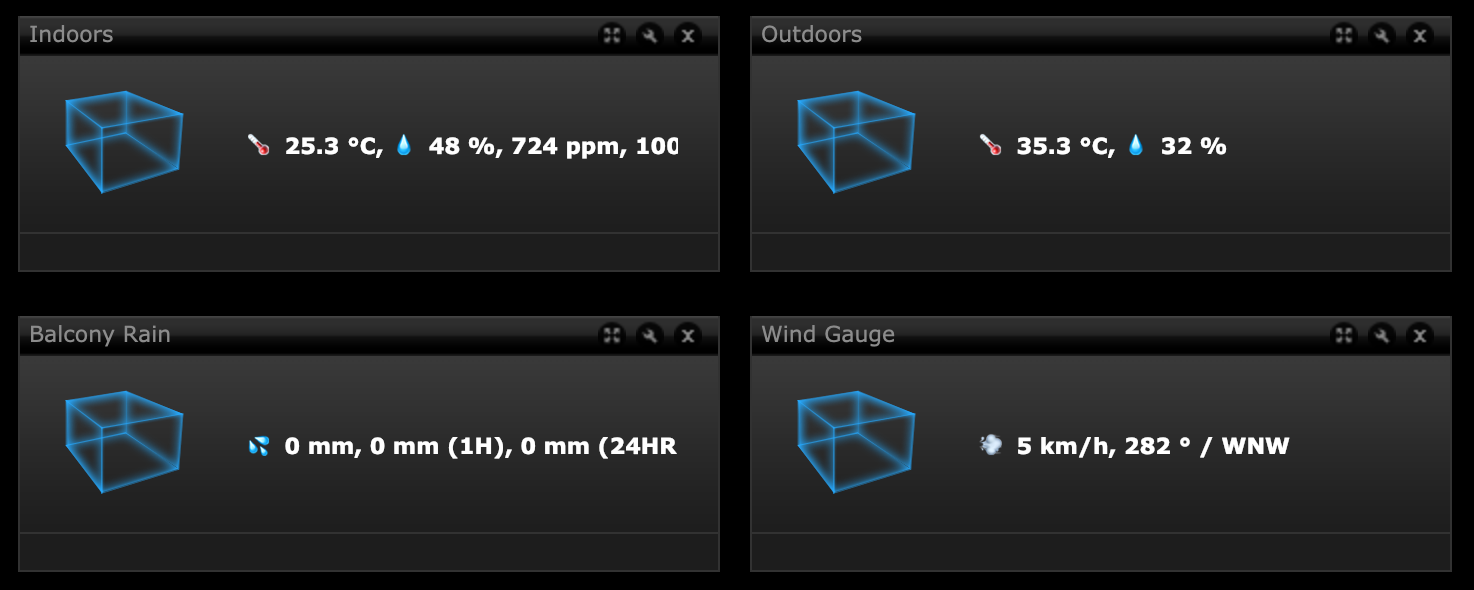

You will now find that these devices are available in your Fibaro HC2/HCL controller (see further down for HC3)

Now click OK to proceed to the Settings page of the Plugin.

Here you will find your devices & modules listed, along with their Fibaro ID's, clicking on the info icon to the right of the ID number will open a popup, showing the device details, along with the Global Variables that have been created in your Fibaro controller for use in Scenes/Logic processes.

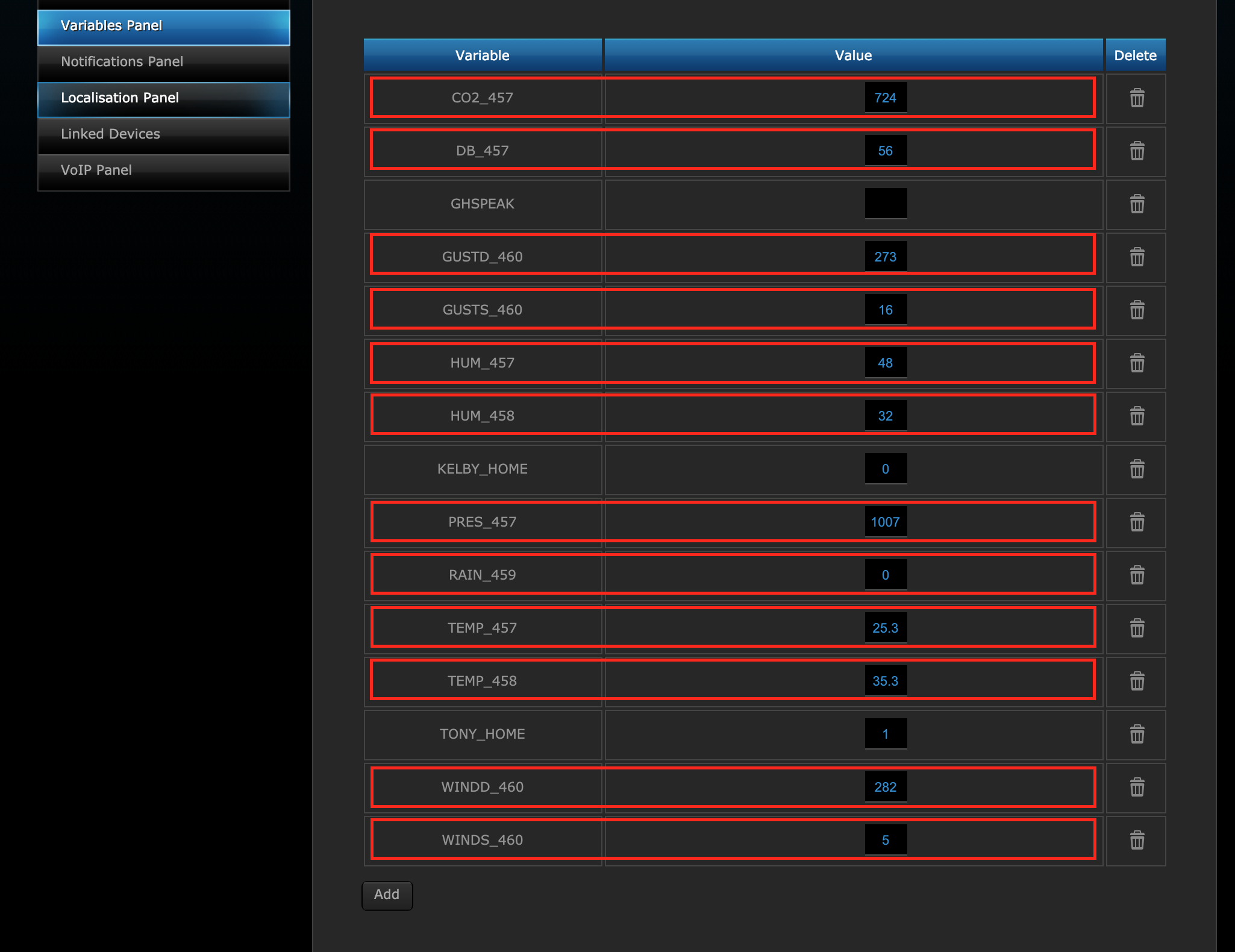

Within your Fibaro controller, under the Variables Panel, you will find all these newly created variables and their values.

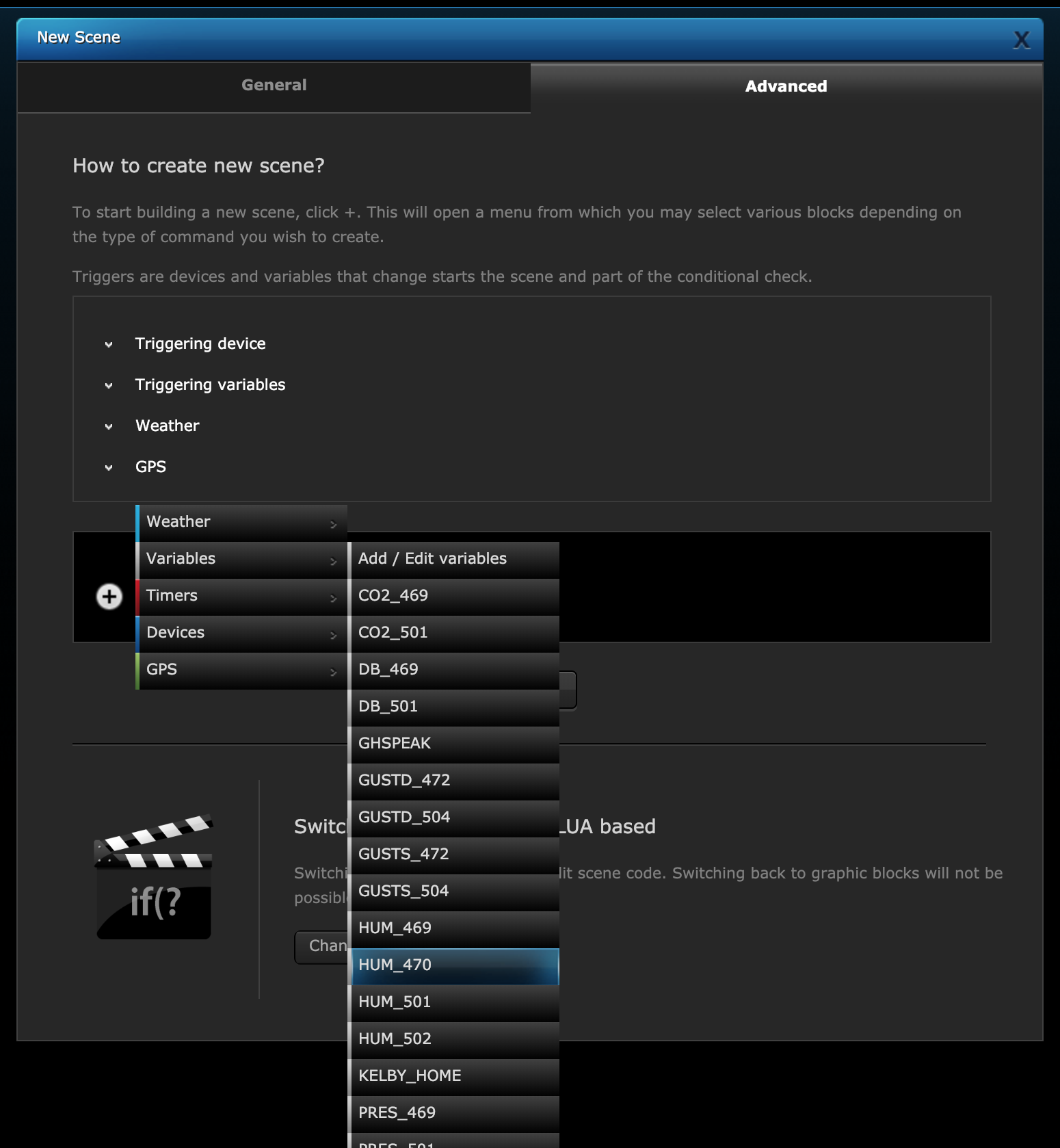

These variables can now be used in scenes in your Fibaro controller.

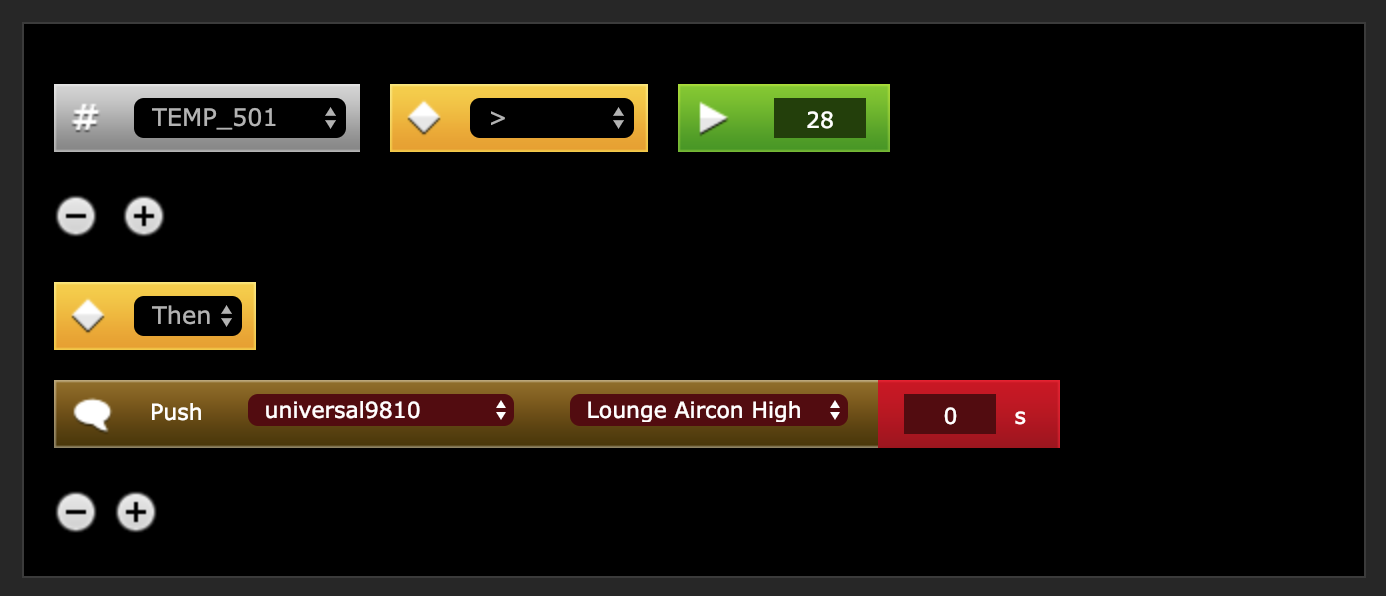

For example, this takes the temperature reading and sends a push notification when the temperature is over 28 degrees.

You will also find attached to this article, some icons that can be added to the Virtual Devices.

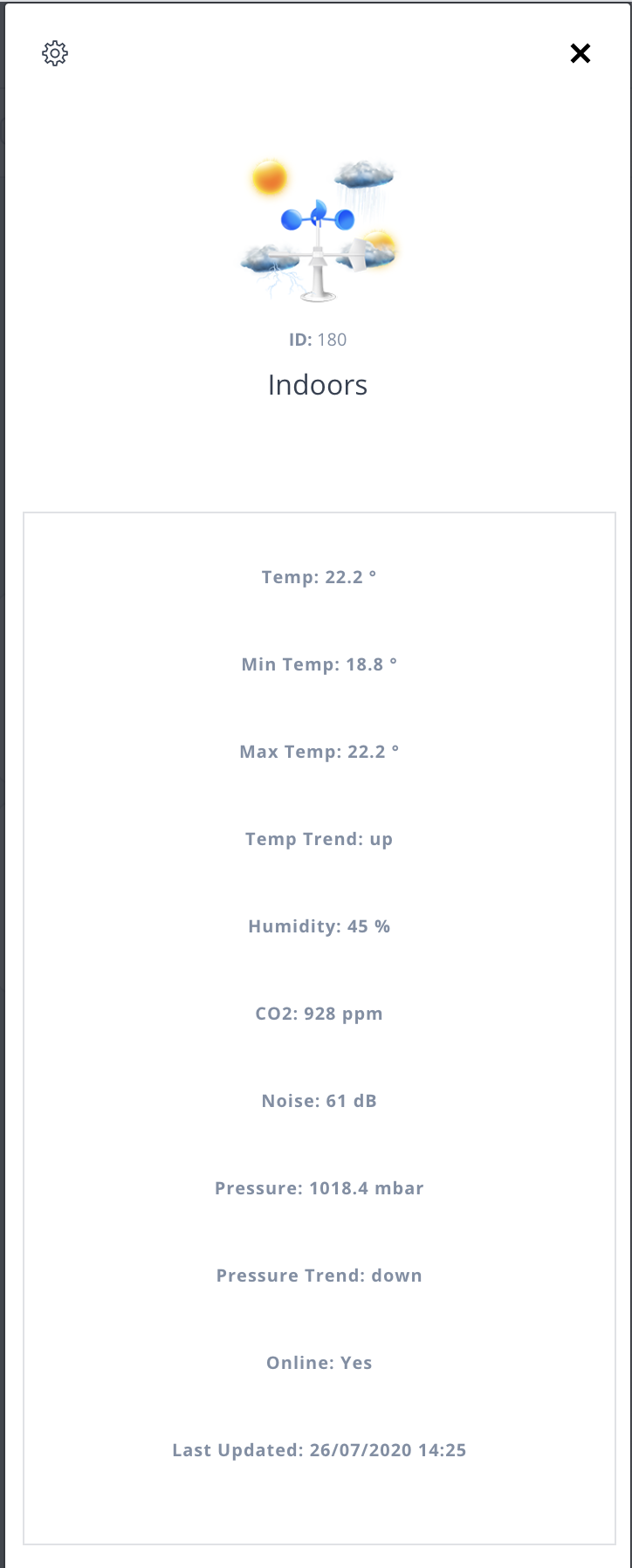

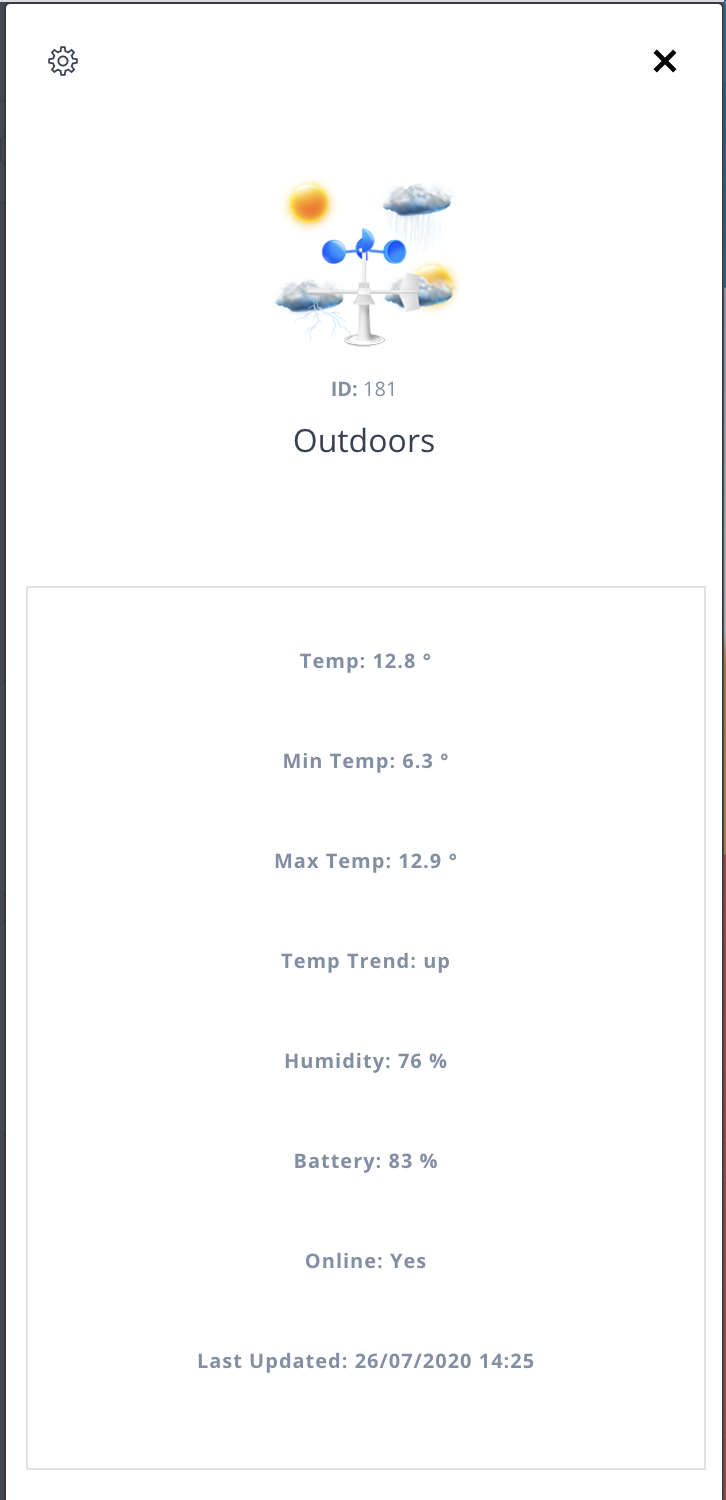

If you are using the Fibaro HC3 controller, you will find the base weather stations have been added as Weather objects, the Rain & Wind sensors are added as generic Quick Apps. The same Variables as listed above are also created to be used in Scenes.
